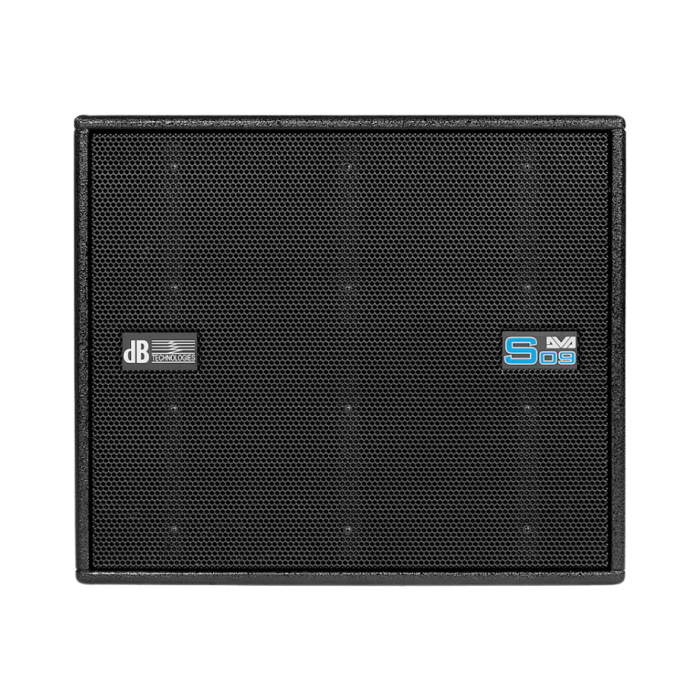

dBTechnologies DVA S09 DP 15" Active Bandpass Subwoofer - Black
Brand
D B TECHNOLOGIES
Power your sound system with tight, dynamic low frequencies using the dBTechnologies DVA S09 DP Active Bandpass Subwoofer in sleek black. Engineered around a premium 15-inch neodymium woofer with a 4-inch voice coil, this compact subwoofer delivers exceptional transient response and punchy sub-bass down to 45 Hz with a maximum output of 136 dB SPL. Designed specifically for professional live sound, it serves as the perfect low-end match for DVA T4 line array modules and active point-source loudspeakers.
Deliver authoritative, high-impact low frequencies to your professional touring rigs and line array configurations with the dBTechnologies DVA S09DP, a compact yet powerful active bandpass subwoofer finished in a durable black coating, engineered for live music venues, touring sound systems, and scalable sound reinforcement.
Key Features & Engineering
- Digipro® Class-D Amplification: Driven by a high-efficiency 1000W RMS digital amplifier module designed for superior thermal stability, low distortion, and massive power delivery.
- 15-Inch Bandpass Design: Houses a high-generation 15" woofer with a 4" voice coil inside a rugged multiplex birch plywood cabinet protected by a tough black finish, producing tight, punchy bass down to 45 Hz with a maximum SPL of 134 dB.
- Cardioid Setup Compatibility: Supports directional low-frequency configurations using an optional SDD delay module to cancel out unwanted rear-stage bass spill.
- Active Crossover & Controls: Features a built-in stereo crossover with selectable cutoff frequencies (90 Hz or 120 Hz with a 24 dB/octave slope) and a phase switch (0°/180°).
Technical Specifications
| Speaker Type | Active Bandpass Subwoofer |
|---|---|
| Color | Black |
| Frequency Response [+/- 3 dB] | 45 - 120 Hz |
| Max SPL | 134 dB |
| Low Frequency Driver (LF) | 15" Woofer (4" Voice Coil) |
| Amplifier Technology | Digipro® Class-D |
| RMS Power | 1000 W |
| Controller | Analog with RMS, Peak, and Thermal Limiters |
| Crossover Frequencies | 90 Hz or 120 Hz (24 dB/Octave) |
| Enclosure Material | Multiplex Birch Plywood |
| Rigging & Mounting | Integrated hardware for fly kits; M20 pole mount on top |
| Dimensions (W x H x D) | 515 mm x 440 mm x 600 mm (20.6 in x 17.6 in x 24 in) |
| Weight | 36 kg (79.37 lbs) |
