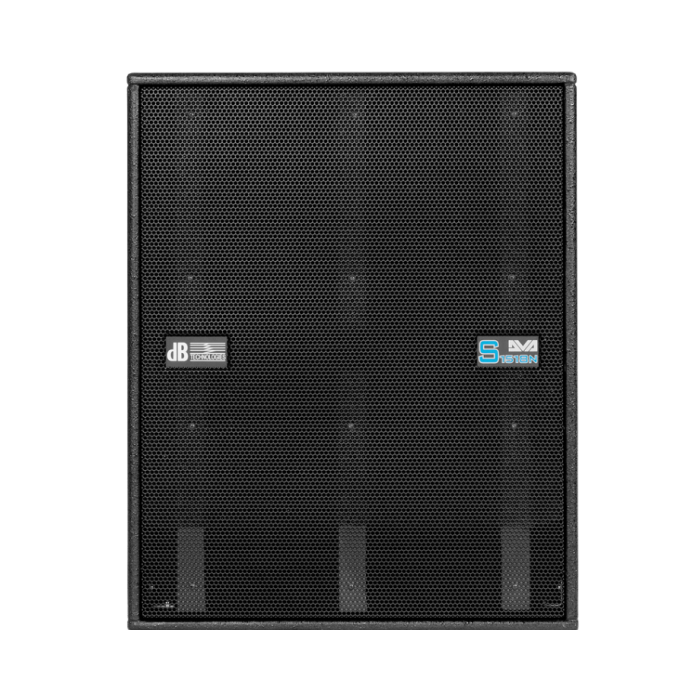

dBTechnologies DVA S1518N 18" Active Bandpass Subwoofer
Brand
D B TECHNOLOGIES
Elevate your low-end performance with the dBTechnologies DVA S1518N Active Bandpass Subwoofer. Driven by a high-power 18-inch premium RCF neodymium woofer with a 4-inch voice coil, this subwoofer provides deep, fast, and chest-thumping low-frequency extension down to 39 Hz with a impressive maximum sound pressure level of 138 dB SPL. Engineered to seamlessly complement DVA series line array modules like the DVA T8 and T12, it provides the low-end punch required for large live sound venues, festivals, and touring systems.
Deliver authoritative, high-impact low frequencies and seamless network control to your professional touring rigs and line array configurations with the dBTechnologies DVA S1518N, a high-performance flyable active bandpass subwoofer engineered for live music venues, large touring sound systems, and scalable sound reinforcement.
Key Features & Engineering
- Digipro® G2 Class-D Amplification: Driven by an advanced 1500W RMS digital amplifier module with a switched-mode power supply (SMPS) and Power Factor Corrector (PFC), ensuring exceptional thermal stability, efficiency, and consistent power delivery regardless of mains voltage fluctuations.
- 18-Inch Bandpass Design: Houses a high-generation 18" woofer with a 4" voice coil inside a rugged multiplex birch plywood cabinet, producing massive, tight low-end down to 39 Hz with a maximum SPL of 138 dB.
- Advanced Network & DSP Control: Features onboard 56-bit DSP with 24-bit/96 kHz AD/DA converters, variable crossover frequencies, precise limiters, adjustable delay settings, and full RDNet compatibility for real-time remote supervision and management.
- Flyable & Tour-Ready Versatility: Includes integrated rigging hardware compatible with optional SRK10 fly kits for effortless subwoofer array deployment, alongside an M20 pole mount for stacked configurations.
Technical Specifications
| Speaker Type | Active Flyable Bandpass Subwoofer |
|---|---|
| Frequency Response [+/- 3 dB] | 39 - 120 Hz |
| Max SPL | 138 dB |
| Low Frequency Driver (LF) | 18" Woofer (4" Voice Coil) |
| Amplifier Technology | Digipro® G2 Class-D with SMPS & PFC |
| RMS Power | 1500 W |
| Controller | DSP 56-bit with RMS, Peak, and Thermal Limiters |
| Network Integration | RDNet Ready for Bi-Directional Control and Supervision |
| Crossover Frequencies | 75 - 120 Hz (5 Hz steps, 24 dB/Octave slope) |
| Enclosure Material | Multiplex Birch Plywood |
| Rigging & Mounting | Integrated hardware for SRK10 fly kit; M20 pole mount on top |
| Dimensions (W x H x D) | 515 mm x 640 mm x 720 mm (20.6 in x 25.6 in x 28.8 in) |
| Weight | 46 kg (101.41 lbs) |
