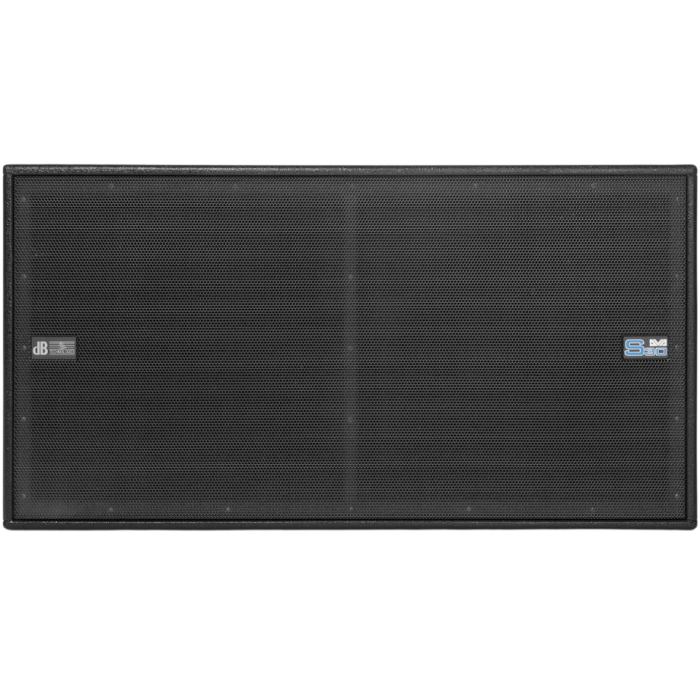

dBTechnologies DVA S30 N Dual 18" Active Horn-Loaded Subwoofer
Brand
D B TECHNOLOGIES
Deliver relentless, chest-thumping low-frequency power with the dBTechnologies DVA S30 N Active Subwoofer. Featuring a hybrid design that combines the sub-bass depth of a bass-reflex chamber with the long-throw projection of a horn-loaded enclosure, this dual 18-inch subwoofer generates massive low-end output up to an astonishing 141 dB Max SPL. It serves as the ultimate low-frequency engine for large-scale touring concert setups, outdoor festivals, and high-capacity club installations.
Deliver massive, thunderous low frequencies with exceptional sound pressure levels for your large-scale live events and concert tours using the dBTechnologies DVA S30N, a high-power active bass-reflex horn-loaded subwoofer engineered for elite professional sound reinforcement.
Key Features & Engineering
- Digipro® G2 Class-D Amplification: Driven by a commanding 3000W RMS digital amplifier module integrated with an ultra-efficient switched-mode power supply (SMPS) and Power Factor Corrector (PFC) for stable global performance.
- Hybrid V-Baffle Design: Combines the structural benefits of bass reflex and horn-loaded systems by utilizing a V-shaped dual-baffle configuration that smoothly channels sound energy into the horn's port to maximize range and efficiency.
- Dual 18" Transducers: Features two massive 18" subwoofers with large 4" voice coils housed inside a durable multiplex plywood cabinet, pushing out a staggering max SPL of up to 141 dB down to 30 Hz.
- Advanced Network & DSP Control: Equipped with an onboard 56-bit DSP controller, 24-bit/48 kHz AD/DA converters, variable crossover steps, customizable delays, and full RDNet compatibility for real-time remote monitoring and adjustment.
Technical Specifications
| Speaker Type | Active Bassreflex-Horn Subwoofer |
|---|---|
| Frequency Response [+/- 3 dB] | 30 - 120 Hz |
| Max SPL | 141 dB |
| Low Frequency Drivers (LF) | 2x 18" Woofers (4" Voice Coils) |
| Amplifier Technology | Digipro® G2 Class-D with SMPS & PFC |
| RMS Power | 3000 W |
| Controller | DSP 56-bit with RMS, Peak, and Thermal Limiters |
| Network Integration | RDNet Ready for Bi-Directional Control and Supervision |
| Crossover Frequencies | 75 - 120 Hz (5 Hz steps, 24 dB/Octave slope) |
| Enclosure Material | Multiplex Plywood with black textured lacquer |
| Rigging & Mounting | Top pick-points for DRK-10/20 rigging frames; 4 grips per side |
| Dimensions (W x H x D) | 1100 mm x 580 mm x 720 mm (44 in x 23.2 in x 28.8 in) |
| Weight | 83 kg (182.98 lbs) |
