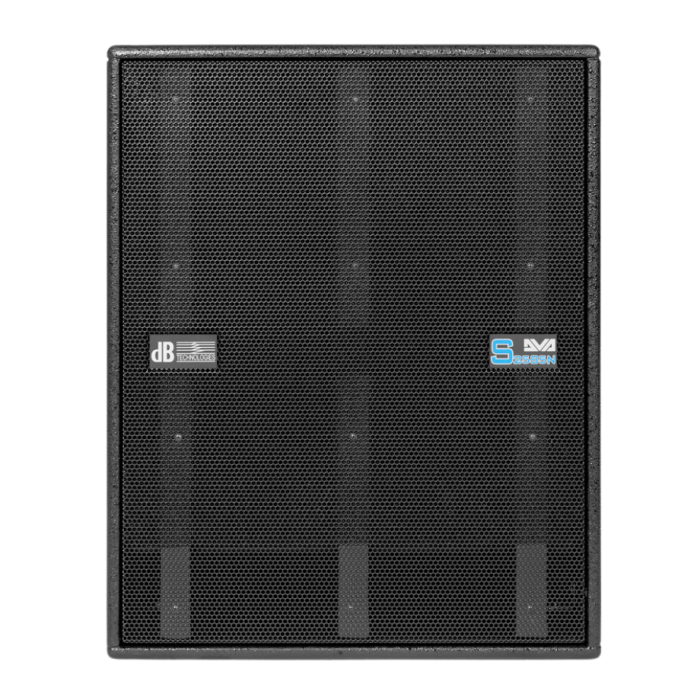

dBTechnologies DVA S2585N Active Cardioid Subwoofer
Brand
D B TECHNOLOGIES
Master stage volume and low-frequency directionality with the dBTechnologies DVA S2585N Active Cardioid Subwoofer. Designed specifically to solve low-end spill on stage, this innovative subwoofer housing features a forward-facing 18-inch woofer (4" voice coil) in a bass-reflex design paired with a rear-facing 15-inch woofer (3.5" voice coil) in a bandpass enclosure. Powered by independent Digipro G2 Class-D amplifiers delivering a massive 2500W RMS total power, it generates punchy, precise sub-bass down to 35 Hz reaching up to 140 dB Max SPL while providing exceptional rear attenuation.
Eliminate unwanted stage spill and achieve ultimate low-frequency directivity for your major touring productions with the dBTechnologies DVA S2585N, a high-performance active cardioid subwoofer engineered for elite sound reinforcement and large-scale live music venues.
Key Features & Engineering
- Digipro® G2 Class-D Amplification: Powered by a robust 2500W RMS digital amplifier module equipped with a high-efficiency switched-mode power supply (SMPS) and Power Factor Corrector (PFC) for stable worldwide performance.
- Integrated Cardioid Design: Houses a specialized dual-transducer configuration combining an 18" woofer and a 15" woofer (both with 4" voice coils) within a robust multiplex plywood cabinet, delivering a massive max SPL of 140 dB while actively rejecting rear-stage low-frequency build-up.
- Advanced Network & DSP Control: Features on-board 56-bit DSP with 24-bit/96 kHz AD/DA converters, variable crossover frequencies, precise limiters, adjustable delay settings, and full RDNet compatibility for real-time remote supervision and management.
- Tour-Ready Rigging & Versatility: Fully equipped for flown cardioid sub arrays using optional SRK10 rigging hardware, alongside integrated top pick-points for DRK-10/20 frames, side handles, and an M20 pole mount.
Technical Specifications
| Speaker Type | Active Cardioid Subwoofer |
|---|---|
| Frequency Response [+/- 3 dB] | 35 - 120 Hz |
| Max SPL | 140 dB |
| Low Frequency Drivers (LF) | 18" + 15" Woofers (4" Voice Coils) |
| Amplifier Technology | Digipro® G2 Class-D with SMPS & PFC |
| RMS Power | 2500 W |
| Controller | DSP 56-bit with RMS, Peak, and Thermal Limiters |
| Network Integration | RDNet Ready for Bi-Directional Control and Supervision |
| Crossover Frequencies | 75 - 120 Hz (5 Hz steps, 24 dB/Octave slope) |
| Enclosure Material | Multiplex Plywood |
| Rigging & Mounting | Integrated hardware for SRK10 fly kit; top pick-points for DRK-10/20 frames; M20 pole mount |
| Dimensions (W x H x D) | 515 mm x 640 mm x 1000 mm (20.6 in x 25.6 in x 40 in) |
| Weight | 65 kg (143.3 lbs) |
