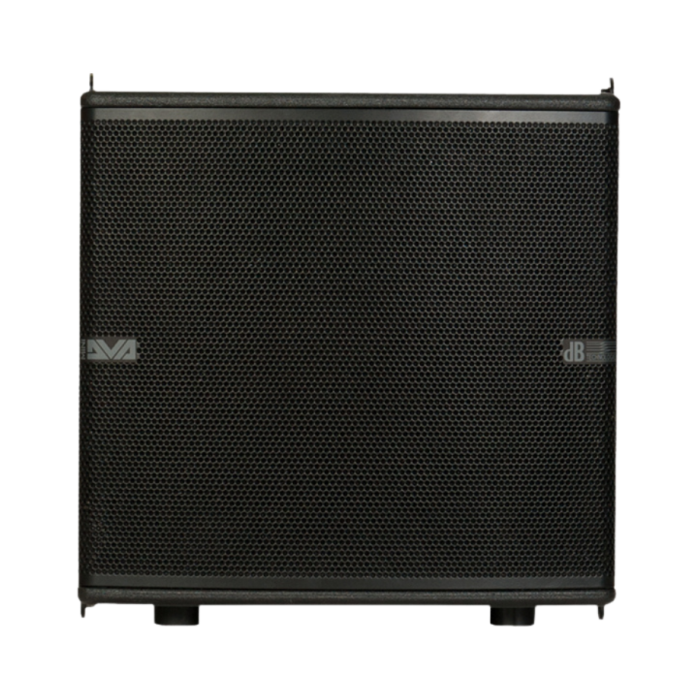

dBTechnologies DVA MS12 12" Flyable Active Subwoofer
Brand
D B TECHNOLOGIES
Enhance the low-frequency impact and musicality of your compact line array system with the dBTechnologies DVA MS12 Active Subwoofer. Designed specifically to pair with DVA K5 line array modules, this flyable 12-inch active subwoofer utilizes a bass-reflex design to produce tight, articulate bass down to 45 Hz with a maximum output of 131 dB SPL. It is the ideal sub-bass solution for medium-sized live venues, houses of worship, corporate events, and touring productions requiring a clean, integrated aesthetic.
Compact yet remarkably powerful, the dBTechnologies DVA MS12 is a lightweight, flyable active bass-reflex subwoofer engineered to seamlessly complement line array systems like the DVA Mini series while delivering incredible sound pressure levels for portable and touring applications.
Key Features & Engineering
- Digipro® G3 Class-D Amplification: Driven by an advanced 700W RMS (1400W Peak) digital amplifier module featuring high-efficiency switched-mode power supply (SMPS) technology with universal auto-ranging PSU (110V~ and 220V~).
- Compact 12" Transducer: Houses a single high-performance 12" woofer with a 3" voice coil inside a robust multiplex plywood cabinet protected by durable polyurea painting.
- Smart Reversible Feet & Rigging: Features innovative dual-position reversible feet that can be flipped in seconds to prevent the ground from contacting integrated flying brackets, along with fast-lock rigging hardware and a top M20 pole mount.
- Streamlined Cabling & Control: Includes a practical crossover output mode to feed signals directly to array modules, onboard 56-bit DSP, variable crossover/phase selection, and a USB B-type port for telemetry and status monitoring.
Technical Specifications
| Speaker Type | Active Bass Reflex Flyable Subwoofer |
|---|---|
| Frequency Response [-6 dB] | 45 - 140 Hz |
| Frequency Response [-10 dB] | 40 - 165 Hz |
| Max SPL | 131 dB |
| Low Frequency Driver (LF) | 12" Woofer (3" Voice Coil) |
| Amplifier Technology | Digipro® G3 Class-D with SMPS & Auto-range PSU |
| RMS Power | 700 W RMS (1400 W Peak) |
| Controller | DSP 56-bit with Dual Active, RMS/Peak, and Thermal Limiters |
| Crossover Frequencies | 90 - 120 Hz (24 dB/Octave slope) |
| Enclosure Material | Multiplex plywood with polyurea finish |
| Rigging & Mounting | Integrated fast-lock hardware for flying; M20 pole mount socket on top |
| Dimensions (W x H x D) | 460 mm x 430 mm x 385 mm (18.1 in x 16.9 in x 15.2 in) |
| Weight | 26.5 kg (58.4 lbs) |
