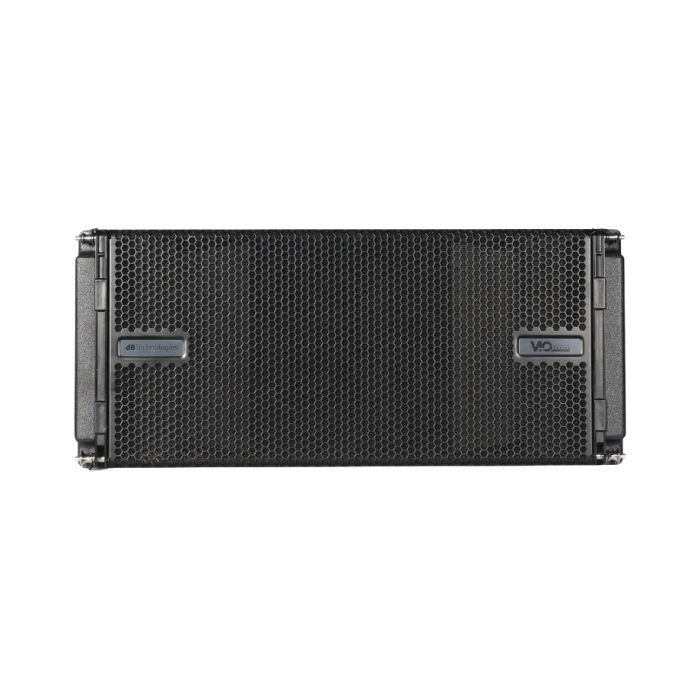

dBTechnologies VIO L210 2-Way Active Line Array Module - Black
Brand
D B TECHNOLOGIES
The dBTechnologies VIO L210 is a high-performance 2-way active line array module created for large-scale live sound applications, touring productions, and permanent installations. Built with custom neodymium transducers arranged in a V-shape wooden enclosure, it delivers remarkable acoustic power, pristine clarity, and long-throw efficiency. The polyurea-coated black finish ensures ultimate durability and a sleek, professional appearance on stage.
Experience next-level touring sound reinforcement with the dB Technologies VIO L210 2-Way Active Line Array Module in classic black, engineered for high-impact live sound applications, theaters, and permanent installations. Combining a unique internal acoustic design with advanced sound processing, this lightweight and powerful module delivers exceptional sound pressure, coverage coherence, high intelligibility, and pristine audio definition.
Advanced Acoustic Architecture & Components
The VIO L210 features custom-designed low-frequency transducers positioned in a V-form and sealed within a robust bass-reflex wooden enclosure, maximizing efficiency under high stress while delivering an accurate transient response and extended low-end reproduction. High frequencies are precisely driven by a single 3” voice coil compression driver (1.4” exit throat) coupled with an exclusive waveguide to create a cylindrical wavefront for precise directivity control over long throw distances. Additionally, two massive aluminum phase plugs—each featuring 26 diamond-shaped holes—sit in front of the woofers to minimize crossover interference and boost overall frequency response.
Digipro® G3 Class-D Amplification & Smart DSP
Driven by a highly efficient Class-D Digipro G3 900 W RMS amplifier, the VIO L210 achieves an impressive maximum SPL of 135 dB. Advanced DSP sound processing utilizing linear phase FIR filters guarantees perfectly coherent coverage even at long distances. Furthermore, the pre-amp module is equipped with digital optical (galvanic) isolation to eliminate ground loops, potential differences, and unwanted buzzing or noise.
Smart Rigging Hardware & Network Control
Equipped with an integrated 3-point rigging system, the VIO L210 allows for rapid and safe setup operations. The front links connect smoothly from any angle, while the back central rigging strand uses a hook-type link that automatically locks systems at preset splay angles calculated via the dBTechnologies Composer software. Network-ready out of the box via integrated RDNet ports, users can easily monitor levels, limiters, and temperatures, configure setups offline, and assign group parameters.
Technical Specifications
| Speaker Type: | 2-Way Active Line Array Module |
| Usable Bandwidth [-6 dB]: | 67 – 20,000 Hz |
| Frequency Response [+/- 3 dB]: | 78 – 18,100 Hz |
| Max SPL (One Unit): | 135 dB |
| High-Frequency Transducer (HF): | 1x 1.4” Exit, 3” Voice Coil, Neodymium (Titanium Diaphragm) |
| Low-Frequency Transducers (LF): | 2x 10”, 2.5” Voice Coil, Neodymium (Aluminum Phase Plug) |
| Horizontal Directivity: | 100° |
| Amplifier Technology: | Digipro® G3 (Class-D) |
| RMS Power: | 900 W |
| Peak Power: | 1800 W |
| Processor & Controller: | DSP 56-bit / FIR Linear Phase Filters |
| Network & Connectivity: | RDNet Remote Control (RJ45 IN/OUT) |
| Power Sockets: | 1x PowerCon TRUE1 In, 1x PowerCon TRUE1 Out |
| Housing Construction: | Multiplex Plywood with Polyurea Painting (Black) |
| Dimensions (W x H x D): | 720 mm x 320 mm x 520 mm (28.35” x 12.6” x 20.47”) |
| Weight: | 28.6 kg (63 lbs) |
| Brands | D B TECHNOLOGIES |
|---|
