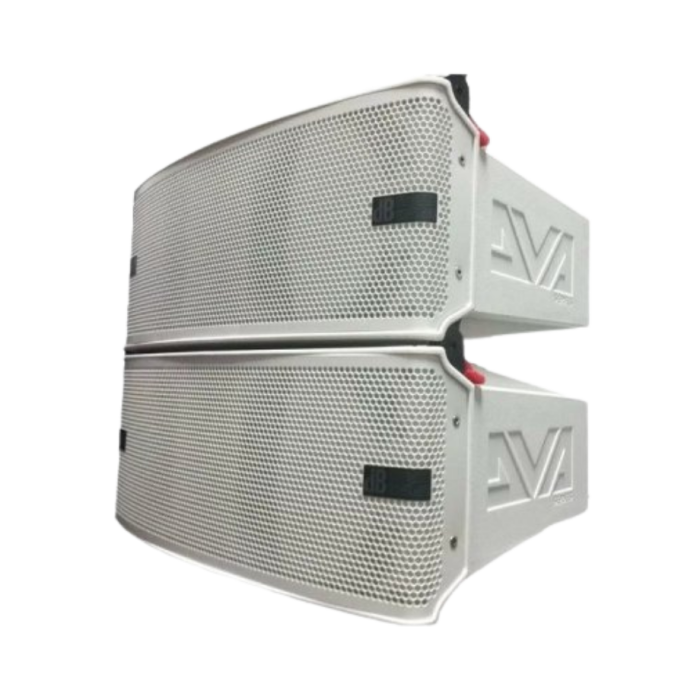

dBTechnologies DVA M2M+M2S Dual 6.5" Active Line Array Module - White
Brand
D B TECHNOLOGIES
Bring crystal-clear audio coverage and streamlined installation to your venue with the dBTechnologies DVA M2M+M2S White Line Array Module Set (DVA MINI). Engineered with a Master/Slave architecture, the M2M master unit houses the onboard 400W RMS Digipro G3 Class-D amplifier and DSP processor to power both itself and the M2S slave unit. Each module features dual 6.5-inch neodymium woofers with custom phase plugs and twin 1-inch neodymium compression drivers, delivering smooth coverage (90° x 15°) and pristine high-frequency intelligibility up to 126 dB Max SPL.
Experience pristine sound reinforcement and remarkable efficiency in a discreet profile with the dBTechnologies DVA M2M + M2SW (White finish), an innovative active Master/Slave compact line array system engineered for portable PA setups, corporate events, and permanent architectural installations.
Key Features & Engineering
- Master + Slave Concept: Comprises an active M2M master module housing the power plant and a passive M2S slave module, drastically reducing overall cabling complexity, setup time, and total weight.
- Digipro® G3 Class-D Amplification: Powered by a built-in 400W RMS (800W Peak) digital amplifier inside the master unit that efficiently drives both the M2M and M2S boxes via auto-ranging SMPS technology.
- High-Performance Neodymium Transducers: Each module features dual 6.5" woofers with custom dual phase plugs for uniform horizontal dispersion, paired with dual 1° neodymium high-frequency compression drivers.
- Tool-Free Fast-Lock Rigging: Features concealed side mechanics utilizing an intuitive quick-locking mechanism, allowing fast and precise adjustments across wide splay angles (0° to 15°) for ground-stacked or flown configurations.
Technical Specifications
| System Type | 2-Way Active Master + Slave Line Array Module Set (White) |
|---|---|
| Frequency Response [-6 dB] | 78 - 19,000 Hz |
| Frequency Response [-10 dB] | 68 - 20,000 Hz |
| Max SPL | 126 dB per unit |
| Low Frequency Drivers (LF) | 2x 6.5" Neodymium Woofers (1.5" Voice Coils) per module |
| High Frequency Drivers (HF) | 2x 1" Neodymium Drivers (1" Voice Coils) per module |
| Amplifier Technology | Digipro® G3 Class-D with Auto-range PSU |
| RMS Power | 400 W RMS (200W LF + 200W HF split between modules) |
| Controller | DSP 56-bit with 24-bit/48 kHz AD/DA converters & 9 system presets |
| Enclosure Material | Reinforced Polypropylene (PP) with stylish white aesthetic |
| Rigging & Mounting | Integrated fast-lock hardware mechanism (splay angles 0° to 15°) |
| Dimensions (W x H x D) | 460 mm x 190 mm x 345 mm (18.1 in x 7.5 in x 13.6 in) per module |
| Weight | M2M (Master): 7.6 kg (16.8 lbs) | M2SW (Slave): 7.1 kg (15.7 lbs) |
