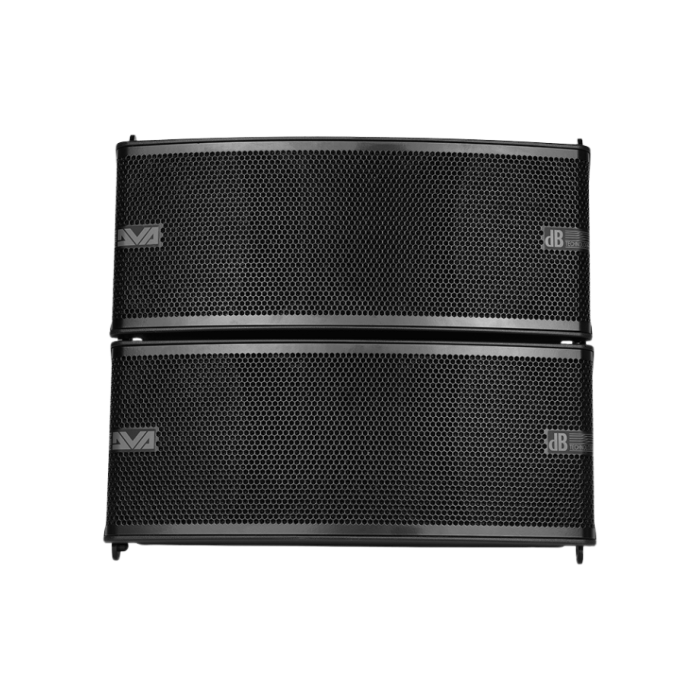

dBTechnologies DVA M2P 2-Way Passive Line Array Module
Brand
D B TECHNOLOGIES
The dBTechnologies DVA M2P is an ultra-lightweight 2-way passive line array module engineered for compact tour rigs, live sound venues, and fixed audio installations requiring high sound pressure in a slim footprint. Featuring twin 6.5-inch neodymium woofers with a custom dual phase-plug alongside two 1-inch neodymium HF drivers, it delivers consistent horizontal dispersion and vocal intelligibility across a 16-Ohm load architecture.
The dBTechnologies DVA M2P is a high-performance 2-way passive line array module engineered to deliver exceptional vocal clarity, uniform horizontal dispersion, and high sound pressure levels in a remarkably lightweight, compact footprint. Designed for portable live sound reinforcement and permanent installations, it combines professional touring-grade durability with advanced acoustic engineering.
Acoustic Design & Custom Phase-Plug Technology
The DVA M2P is equipped with two 6.5” neodymium woofers featuring a custom dual phase-plug design that optimizes mid-range efficiency and ensures exceptionally homogeneous and consistent horizontal coverage (90°). Two 1” neodymium high-frequency drivers coupled to custom-designed array horns deliver crystalline, highly intelligible highs. A rear-panel compensation switch (+3 dB) allows users to easily adjust high-frequency response for long-throw applications.
Rugged Construction & Fast-Lock Mechanics
Housed in a hardwearing, reinforced polypropylene (PP) enclosure featuring an internal anti-vibration structure, the cabinet combines extreme durability with a light total weight of just 7.1 kg (15.7 lbs). It utilizes the intuitive DVA Mini "fast-lock" rigging mechanics, completely eliminating loose pins and complex hardware to allow rapid, precise array assembly and splay angle adjustments from 0° to 15°.
Technical Specifications
| Speaker Type: | 2-Way Passive Line Array Module |
| Nominal Power Rating (RMS): | 150 W |
| Peak Power Rating: | 300 W |
| Nominal Impedance: | 16 Ohms |
| Max SPL: | 126 dB per unit |
| Frequency Response [-6 dB]: | 78 – 19,000 Hz |
| Frequency Response [-10 dB]: | 68 – 20,000 Hz |
| High-Frequency Transducers (HF): | 2x 1”, Neodymium (1” Voice Coil) |
| Low-Frequency Transducers (LF): | 2x 6.5”, Neodymium (1.5” Voice Coil) |
| Directivity (H x V): | 90° x 15° (Single Unit) |
| Signal Input / Output: | 1x Speakon IN, 1x Speakon OUT (Pin 1+ = +, Pin 1- = -) |
| Housing Material: | Polypropylene PP (Internal Anti-Vibration Structure) |
| Rigging / Splay Angles: | Integrated Fast-Lock Mechanics (0° to 15° in 1.5° steps) |
| Dimensions (W x H x D): | 460 mm x 190 mm x 345 mm (18.1 in x 7.5 in x 13.6 in) |
| Weight: | 7.1 kg (15.7 lbs) |
