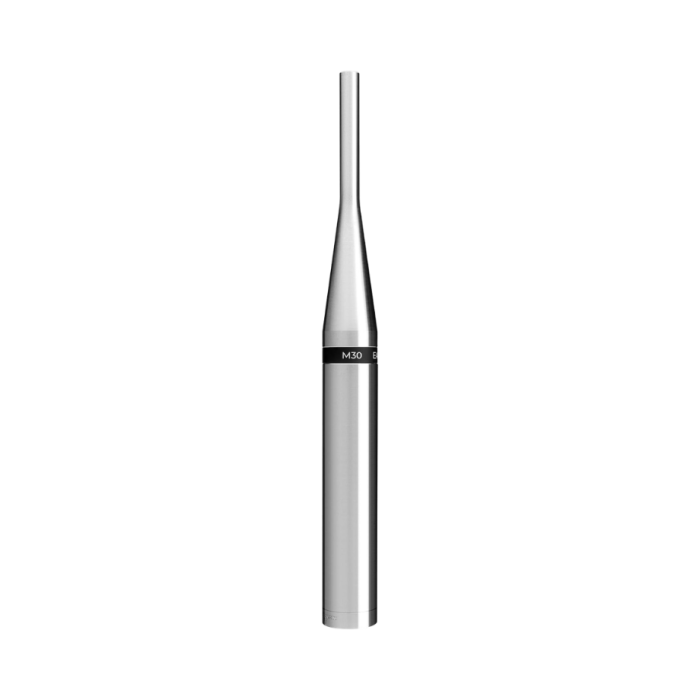

Earthworks M30 30kHz Omnidirectional Measurement Microphone
Brand
Earthworks Audio
Looking for absolute precision and laboratory-grade reference performance for audio system tuning and room analysis? The Earthworks M30 is an industry-standard 30kHz omnidirectional measurement microphone engineered to deliver accurate acoustic data across live sound alignment, installed audio, loudspeaker design, and research applications.
Achieve absolute acoustic precision and laboratory-grade data integrity with the Earthworks M30 30kHz Omnidirectional Measurement Microphone. Designed for critical acoustical analysis, loudspeaker design, room correction, and live sound system tuning, this high-definition free-field condenser microphone delivers an ultra-wide, flat frequency response spanning from 3Hz all the way up to 30kHz.
Why Choose the Earthworks M30 Measurement Microphone?
Acoustical testing and real-time audio analysis demand microphones that introduce zero coloration, phase anomalies, or distortion. The Earthworks M30 sets the industry standard by combining a very small, highly accurate omnidirectional element with a robust stainless steel body. It provides uniform 360-degree pickup consistency and exceptional stability across changing environments, ensuring your measurement software captures the true, unadulterated behavior of any space or sound reinforcement system.
Key Performance Features
- Ultra-Wide Frequency Response: Delivers a smooth, flat response spanning from 3Hz up to 30kHz (+1/-3 dB), capturing deep sub-bass characteristics and high-frequency air with total accuracy.
- True Omnidirectional Directivity: Flawless 360-degree pickup consistency ensures accurate sound pressure level capture regardless of microphone orientation.
- Lightning-Fast Impulse & Linear Phase Response: Swiftly tracks rapid acoustic transients, making it exceptionally well-suited for FFT-based real-time analysis software like SMAART, SIM, and REW.
- High SPL Handling: Safely manages up to 140 dB SPL without distortion, allowing direct measurement right in front of high-output concert line arrays or loud test environments.
- Rugged Stainless Steel Construction: Precision-machined from solid stainless steel to endure the daily rigors of field engineering, laboratory testing, and touring.
Technical Specifications
| Microphone Type | Free-Field Measurement Condenser |
|---|---|
| Polar Pattern | Omnidirectional |
| Frequency Response | 3Hz – 30kHz (+1/-3 dB) |
| Sensitivity | 34 mV/Pa [-29 dBV/Pa] |
| Max Acoustic Input | 140 dB SPL |
| Signal-to-Noise Ratio | 20 dB SPL equivalent (A-weighted) |
| Power Requirements | 24–48V Phantom Power, 10mA |
| Output Impedance | 65Ω balanced (between pins 2 & 3) |
| Dimensions & Weight | Length: 9.0" (229mm) x Diameter: 0.86" (22mm); Weight: 0.5 lbs (225g) |
Ideal Applications
Engineered for professional acousticians, live sound system engineers, acoustic consultants, and research facilities across Dubai, Abu Dhabi, and the UAE, the Earthworks M30 provides the ultimate benchmark in measurement reliability, PA system alignment, room tuning, and loudspeaker development.
