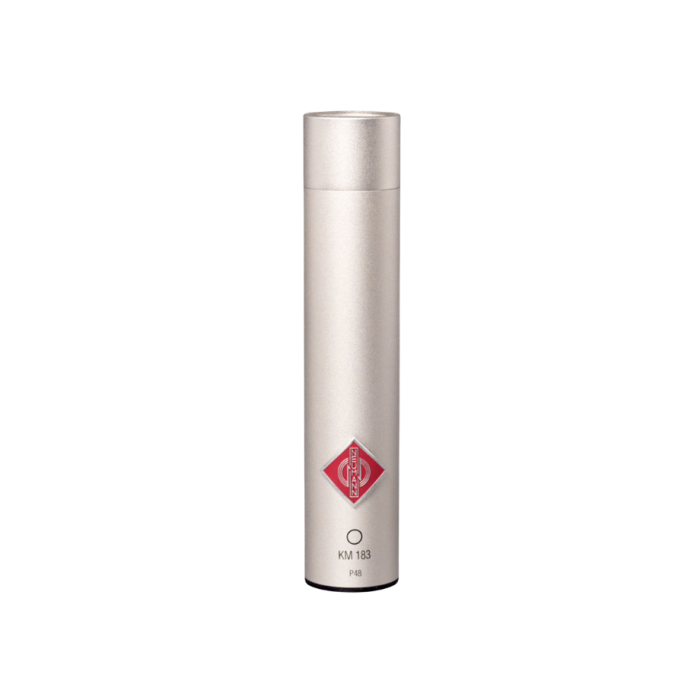

Neumann KM 183 Omnidirectional Small-Diaphragm Condenser Microphone – Nickel

Neumann KM 183 Omnidirectional Small-Diaphragm Condenser Microphone

The Neumann KM 183 is a professional small-diaphragm condenser microphone from the acclaimed Neumann Series 180. Designed for applications where absolute sonic transparency is essential, the KM 183 features a frequency-independent omnidirectional polar pattern, delivering exceptionally natural sound reproduction with virtually no off-axis coloration. Its combination of low self-noise, high SPL handling, and transformerless electronics has made the KM 183 a trusted choice for professional studios, broadcast facilities, live productions, and location recording worldwide.

Unlike modular KM A and KM D systems, the KM 183 is a fixed-configuration microphone, providing the renowned Neumann performance in a cost-effective and compact design. Its pressure transducer capsule offers an unlimited low-frequency response, while diffuse-field equalization ensures an exceptionally balanced sound in reverberant environments. This makes the KM 183 ideal for capturing acoustic instruments, orchestras, choirs, ambient recordings, and immersive stereo or surround microphone arrays.

Natural Omnidirectional Sound Reproduction

The KM 183 employs a pressure transducer capsule with a highly uniform omnidirectional pickup pattern. Its frequency-independent polar response captures sound evenly from every direction without introducing tonal coloration, preserving the natural acoustic character of instruments and recording spaces. In free-field applications, the capsule incorporates a gentle high-frequency boost that contributes to exceptional detail and clarity while maintaining accurate overall tonal balance.

Series 180 Professional Performance

The Series 180 consists of three microphones with different directional characteristics: the KM 183 (omnidirectional), KM 184 (cardioid), and KM 185 (hypercardioid). Built using Neumann's transformerless circuitry, the KM 183 delivers a wide dynamic range, outstanding transient response, and exceptionally low self-noise while maintaining reliable performance in demanding recording environments. Its compact design also makes it visually unobtrusive for television, film, and live performance applications.

Key Features

• Professional small-diaphragm condenser microphone.
• Frequency-independent omnidirectional polar pattern.
• Pressure transducer capsule with unlimited low-frequency response.
• Diffuse-field equalized for natural acoustic reproduction.
• Transformerless output circuitry.
• Very low self-noise of only 13 dB-A.
• Maximum SPL of 140 dB.
• Excellent off-axis response without tonal coloration.
• Compact and lightweight professional design.
• Ideal for stereo, surround, studio, broadcast, and location recording.

Ideal Applications

• Classical music recording
• Orchestral recording
• Choir recording
• Concert hall ambience
• Acoustic guitar
• Piano recording
• Strings, brass, and woodwinds
• Drum overheads and percussion
• Broadcast and television production
• Stereo and surround microphone arrays

Technical Specifications

• Microphone Type: Small-diaphragm condenser microphone
• Series: Neumann Series 180
• Acoustical Operating Principle: Pressure transducer
• Polar Pattern: Omnidirectional
• Frequency Response: 20 Hz – 20 kHz
• Sensitivity: 12 mV/Pa ±1 dB
• Equivalent Noise Level (A-weighted): 13 dB-A
• Signal-to-Noise Ratio (A-weighted): 81 dB
• Maximum SPL (0.5% THD): 140 dB
• Maximum Output Voltage: 10 dBu
• Rated Impedance: 50 Ω
• Rated Load Impedance: 1 kΩ
• Power Requirement: 48 V Phantom Power (P48)
• Current Consumption: 3.2 mA
• Connector: XLR 3-pin
• Diameter: 22 mm
• Length: 107 mm
• Weight: Approximately 80 g
• Finish: Nickel
• Manufacturer Part Number: 008437

Package Contents

• Neumann KM 183 Microphone
• Neumann WNS 100 Windscreen
• Neumann SG 21 bk Stand Mount Swivel

Why Choose the Neumann KM 183?

The Neumann KM 183 is an outstanding choice for professionals seeking uncompromising accuracy and transparency. Its frequency-independent omnidirectional response, diffuse-field equalization, transformerless electronics, low self-noise, and high SPL capability make it ideal for capturing the natural character of acoustic performances and recording environments. Whether used for orchestral sessions, piano recordings, broadcast production, or immersive stereo and surround techniques, the KM 183 delivers the precision, reliability, and world-class audio quality that define the Neumann name.
