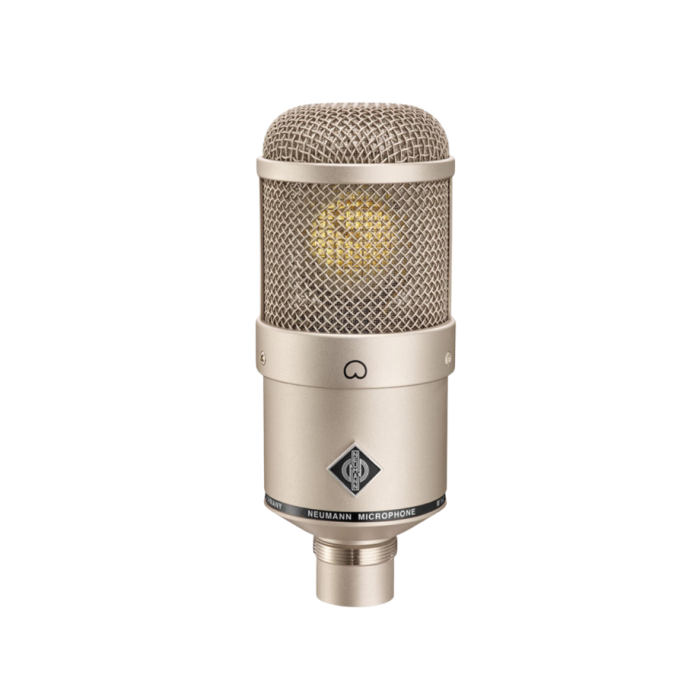

Neumann M 147 Tube Large-Diaphragm Cardioid Tube Condenser Microphone

Neumann M 147 Tube Large-Diaphragm Cardioid Tube Condenser Microphone

The Neumann M 147 Tube is a premium large-diaphragm tube condenser microphone that combines the unmistakable sonic character of Neumann's legendary vintage tube microphones with the performance and reliability demanded by modern recording studios. Featuring the renowned K 47 large-diaphragm capsule—derived from the iconic U 47—and an innovative tube amplifier with a transformerless output stage, the M 147 Tube delivers exceptional warmth, presence, low noise, and outstanding transient response for professional recording applications.

Designed for professional music production, broadcast, voice-over, film dubbing, podcasting, and studio recording, the M 147 Tube captures vocals and instruments with remarkable detail, rich harmonic depth, and natural clarity. Its fixed cardioid pickup pattern provides excellent isolation from unwanted ambient sound while maintaining a smooth, balanced frequency response, making it an ideal microphone for critical recording sessions.

Legendary K 47 Capsule with Modern Tube Technology

At the heart of the M 147 Tube is Neumann's legendary K 47 large-diaphragm condenser capsule, celebrated for its warm low end, articulate midrange, and detailed high-frequency response. The capsule is paired with a specially selected subminiature vacuum tube that adds subtle harmonic richness while maintaining exceptionally low self-noise.

Unlike traditional tube microphones that use large output transformers, the M 147 Tube incorporates a transformerless solid-state output stage. This advanced design delivers extended low-frequency performance, outstanding signal integrity, and the ability to drive microphone cables up to 300 meters without noticeable signal degradation.

Outstanding Performance for Vocals and Solo Instruments

The M 147 Tube is particularly well suited for lead vocals, voice-over recording, narration, podcasts, and acoustic instruments where warmth, presence, and detail are essential. Its tube circuitry provides gentle, musical saturation as sound pressure levels increase, producing a natural analog character that enhances recordings without sounding harsh or overly compressed.

With an exceptionally low self-noise of just 12 dB-A, the microphone is equally capable of capturing quiet performances with remarkable clarity while handling louder sources with smooth overload characteristics up to 134 dB SPL.

Key Features

• Professional large-diaphragm tube condenser microphone.
• Legendary Neumann K 47 large-diaphragm capsule.
• Fixed cardioid polar pattern.
• Vacuum tube amplifier with transformerless output stage.
• Classic tube warmth with modern signal performance.
• Extremely low self-noise for critical recording applications.
• Excellent vocal presence and detailed midrange reproduction.
• Capable of driving very long microphone cable runs.
• Premium Neumann construction for professional studio use.
• Includes dedicated external power supply.

Ideal Applications

• Professional vocal recording
• Voice-over and narration
• Podcast production
• Broadcast studios
• Film and television dialogue recording
• Acoustic guitar recording
• Piano and orchestral instruments
• Solo string and wind instruments
• Commercial music production
• High-end home and professional recording studios

Technical Specifications

• Microphone Type: Large-diaphragm tube condenser microphone
• Acoustical Operating Principle: Pressure gradient transducer
• Polar Pattern: Cardioid
• Frequency Response: 20 Hz – 20 kHz
• Sensitivity: 20 mV/Pa
• Equivalent Noise Level (A-weighted): 12 dB-A
• Signal-to-Noise Ratio (A-weighted): 82 dB
• Maximum SPL: 114 dB (0.5% THD), 134 dB (5% THD)
• Rated Impedance: 50 Ω
• Rated Load Impedance: 1 kΩ
• Power Supply: N 149 A
• Microphone Connector: DIN 8 F
• Power Supply Output: XLR 3 F
• Dimensions: 57 mm × 142 mm
• Weight: 460 g

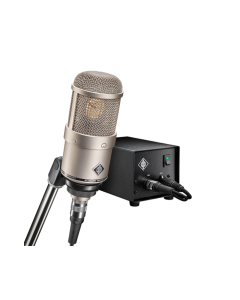

Included Accessories

• Neumann M 147 Tube microphone
• N 149 A power supply with mains cable
• SG 2 swivel mount
• KT 8 microphone cable
• Protective dust cover
• Aluminium carrying case

Why Choose the Neumann M 147 Tube?

The Neumann M 147 Tube offers an exceptional combination of vintage tube character and modern recording performance. Its legendary K 47 capsule, ultra-low self-noise, transformerless output stage, and carefully engineered tube circuitry produce recordings with outstanding warmth, clarity, and musical detail. Whether capturing lead vocals, spoken word, or acoustic instruments, the M 147 Tube delivers the unmistakable Neumann sound trusted by recording professionals around the world for the most demanding studio applications.
