Neumann M 147 Tube Large-Diaphragm Condenser Microphone Kit

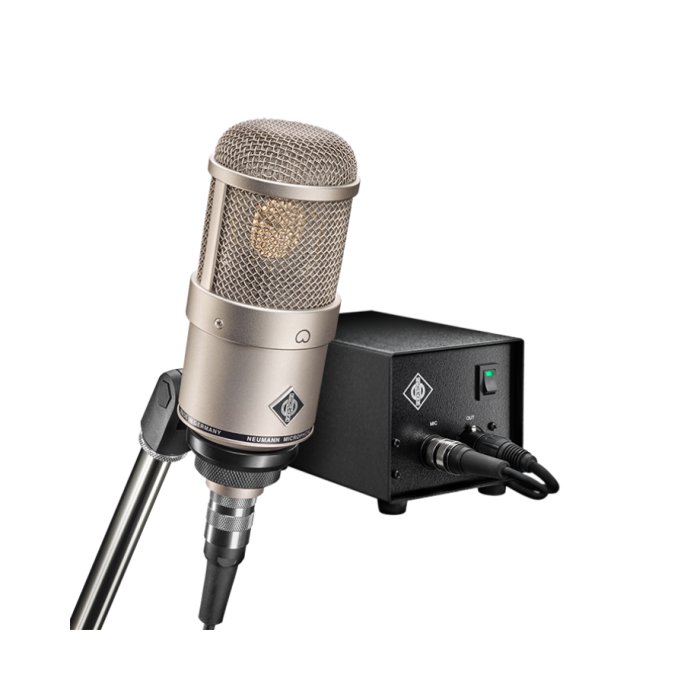

Neumann M 147 Tube Microphone Kit

The Neumann M 147 Tube Microphone Kit is a complete professional recording solution built around the acclaimed M 147 Tube large-diaphragm condenser microphone. Combining the unmistakable warmth of a classic tube microphone with modern electronic design, the kit includes all of the essential accessories required for professional studio operation. It is an outstanding choice for recording engineers, musicians, producers, broadcasters, and voice artists seeking the legendary Neumann sound for vocals, speech, and acoustic instruments.

Inspired by the iconic Neumann U 47, the M 147 Tube utilizes the renowned K47 large-diaphragm capsule together with a carefully selected vacuum tube amplifier and a transformerless output stage. This innovative design delivers the rich harmonic character associated with classic tube microphones while providing exceptionally low self-noise, outstanding transient response, and excellent signal integrity for today's high-resolution recording systems.

Classic Tube Character with Modern Engineering

The M 147 Tube captures vocals and instruments with remarkable warmth, depth, and detail. Its fixed cardioid polar pattern focuses on the sound source while reducing unwanted ambient noise, making it ideal for critical studio recordings. The hybrid tube circuitry introduces smooth harmonic richness that enhances recordings without sacrificing clarity or transparency.

Unlike traditional tube microphones that rely on large output transformers, the M 147 Tube employs a transformerless output stage capable of driving long cable runs while maintaining excellent bass response, low distortion, and outstanding overall fidelity.

Key Features

• Professional large-diaphragm tube condenser microphone.
• Legendary K47 large-diaphragm condenser capsule.
• Fixed cardioid polar pattern.
• Vacuum tube amplifier with transformerless output stage.
• Vintage-inspired tonal character with modern performance.
• Ultra-low self-noise for recording quiet sound sources.
• Exceptional detail, warmth, and vocal presence.
• High-quality construction for professional studio use.
• Complete recording kit with dedicated power supply and accessories.

Complete Kit Includes

• Neumann M 147 Tube microphone
• Neumann N 149 A external power supply with power cable
• Neumann SG 2 swivel mount
• Neumann KT 8 microphone cable
• Protective dust cover
• Aluminium carrying case

Ideal Recording Applications

• Professional vocal recording
• Voice-over and narration
• Podcast production
• Broadcast studios
• Film and television dialogue
• Acoustic guitar recording
• Piano and orchestral instruments
• Solo strings and woodwinds
• Commercial music production
• Premium home and professional recording studios

Technical Specifications

• Microphone Type: Large-diaphragm tube condenser microphone
• Acoustic Principle: Pressure gradient transducer
• Polar Pattern: Cardioid
• Frequency Response: 20 Hz – 20 kHz
• Sensitivity: 20 mV/Pa
• Equivalent Noise Level (A-weighted): 12 dB-A
• Signal-to-Noise Ratio (A-weighted): 82 dB
• Maximum SPL: 114 dB (0.5% THD), 134 dB (5% THD)
• Rated Impedance: 50 Ω
• Power Supply: N 149 A
• Microphone Connector: 8-pin DIN
• Output Connector: XLR 3-pin
• Dimensions: 57 mm × 142 mm
• Weight: 460 g

Why Choose the Neumann M 147 Tube Microphone Kit?

The Neumann M 147 Tube Microphone Kit delivers everything needed to begin professional tube microphone recording immediately. Combining the celebrated sonic character of the M 147 Tube with genuine Neumann accessories, the kit provides reliable performance, straightforward setup, and exceptional recording quality. Whether capturing expressive vocals, detailed voice recordings, or acoustic instruments, this complete package offers the warmth of classic tube technology together with the precision and reliability demanded by modern recording professionals.
