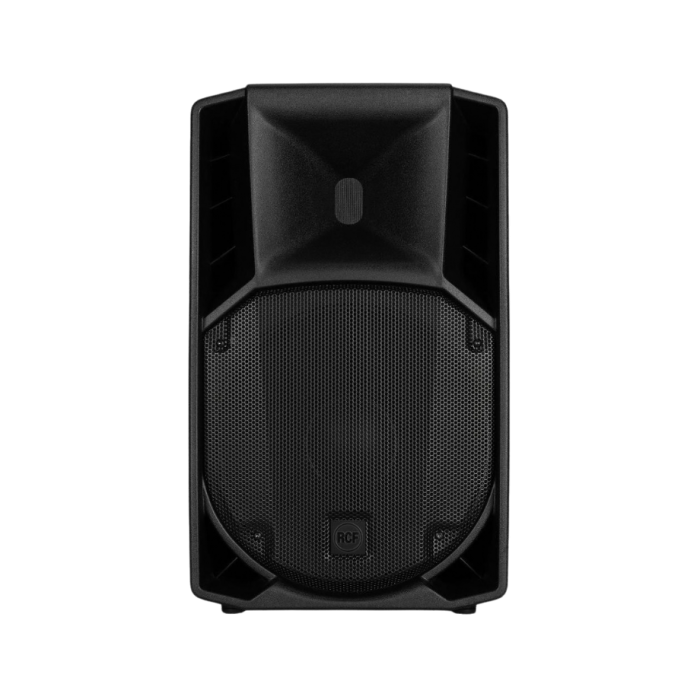

RCF ART 732-A MK5 Active Two-Way PA Speaker
Brand
RCF
The RCF ART 732-A MK5 is a high-performance 2-way active PA speaker engineered for live sound, events, and professional audio reinforcement. It features a powerful 1400 W peak Class-D amplifier system, a 12″ woofer for accurate low-frequency response, and a titanium-diaphragm compression driver for clear high-frequency detail. Advanced DSP with FiRPHASE and XBOOST bass enhancement ensures balanced frequency response and controlled directivity. With 131 dB max SPL and a constant-directivity horn design, this robust speaker delivers impactful sound in a compact, portable enclosure.
The RCF ART 732-A MK5 Active Two-Way Speaker is a professional powered PA system designed for live sound reinforcement, DJs, bands, corporate events, and installation use. It combines high output performance, advanced DSP processing, and precision transducers to deliver clear, powerful, and consistent audio.
Key Features
- 1400 W Peak Class-D bi-amplification (1000 W LF / 400 W HF)
- Maximum SPL: 131 dB
- 12" high-power woofer with 2.5" voice coil
- 3.0" titanium compression driver
- 90° × 60° constant directivity coverage
- Advanced DSP with FiRPHASE technology
- XBOOST low-frequency enhancement
Technical Specifications
- Frequency Response: 50 Hz – 20 kHz
- Maximum SPL: 131 dB @ 1 m
- Coverage Pattern: 90° horizontal × 60° vertical
- Inputs: XLR / Jack
- Output: XLR link
- Controls: Volume, Mic/Line, Boost
- Protection: Thermal, RMS, soft limiter
- Dimensions: 637 × 387 × 363 mm
- Weight: 17.8 kg
Design & Build
The cabinet is constructed from rugged polypropylene composite material with integrated handles and a 35 mm pole mount for flexible installation. The design ensures durability, portability, and reliable performance in demanding environments.
Applications
- Live music performances
- DJ setups
- Corporate events and presentations
- Houses of worship
- Portable and installed PA systems
Official Product Page
| Manufacturer | RCF |
|---|
