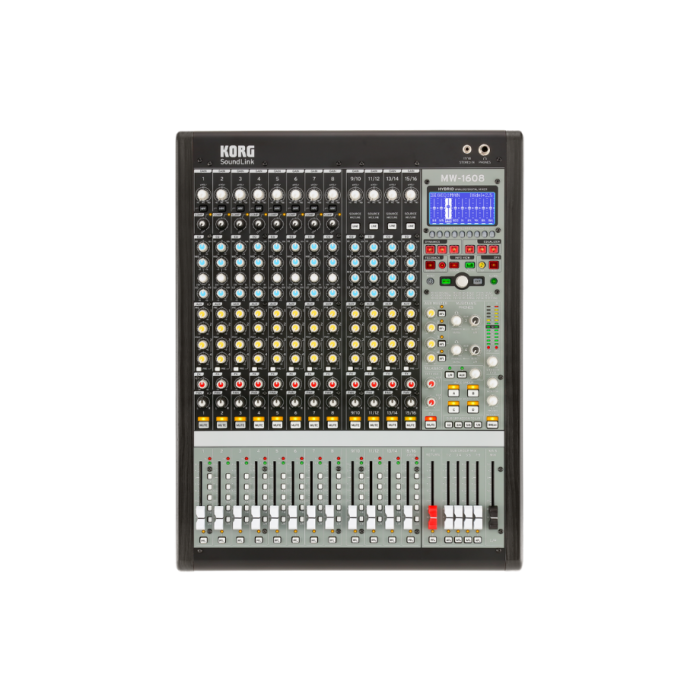

Korg MW-1608 Hybrid 16-Channel Mixer

Korg SoundLink MW-1608 Hybrid Analog/Digital Mixer

The Korg SoundLink MW-1608 is a professional 16-channel hybrid analog and digital mixer designed for live sound engineers, musicians, recording studios, houses of worship, and broadcast environments. Developed in collaboration with legendary mixer designers Greg Mackie and Peter Watts, the MW-1608 combines the immediacy and warmth of analog mixing with the flexibility and precision of advanced digital signal processing.

Featuring premium HiVolt microphone preamps, high-headroom analog circuitry, KORG's renowned 32-bit digital effects engine, advanced dynamics processing, and an 8-bus architecture, the MW-1608 delivers exceptional audio performance and intuitive hands-on operation. It is engineered for professionals who want the sonic advantages of analog mixing while benefiting from powerful digital processing where it matters most. :contentReference[oaicite:0]{index=0}

16-Channel Hybrid Mixing Architecture

The MW-1608 provides a versatile channel configuration suitable for bands, live events, recording sessions, and multimedia production environments. Its hybrid design offers traditional analog workflow with integrated digital control and processing.

16-channel mixing architecture
8 mono channels and 4 stereo input channels
True 8-bus configuration with group outputs
Designed for live sound, studio recording, and production applications

Premium HiVolt Microphone Preamps

At the core of the MW-1608 are KORG's premium HiVolt microphone preamps, delivering exceptional headroom, low noise performance, and outstanding dynamic response. These preamps ensure clean and transparent audio capture even during demanding live performances.

HiVolt high-headroom microphone preamps
Equivalent input noise: -128 dBu
Gain range: +10 dB to +60 dB (mic)
Excellent dynamic range and low distortion characteristics

Professional Analog Signal Path

The mixer utilizes premium analog circuitry designed to preserve sonic integrity and provide the warmth and responsiveness that engineers expect from professional analog consoles.

Frequency response: 20 Hz – 20 kHz (+0.5/-1.5 dBu)
Total harmonic distortion: 0.004%
Maximum output level: +26 dBu
Low-noise professional signal path

Powerful 32-Bit Digital Processing

The MW-1608 incorporates KORG's advanced 32-bit digital processing technology, derived from the company's flagship music production products. The integrated DSP engine allows extensive signal processing without sacrificing the mixer’s analog workflow.

32-bit internal digital signal processing
Tru-Bit-Perfect 32-bit A/D and D/A conversion
Advanced effects, dynamics, and EQ processing
Up to 10 simultaneous processing functions

Studio-Quality Effects Engine

The built-in effects section includes a wide range of professional effects suitable for vocals, instruments, and complete mixes. Effects are based on KORG's renowned digital processing technologies.

Hall, Room, Stage, Plate, and Spring reverbs
Analog Delay and Tape Echo effects
Variable delay and KORG SDD-3000 delay emulation
Chorus, Flanger, Exciter, and Sub Bass enhancement

Advanced Dynamics Processing

The mixer includes comprehensive dynamics tools that help engineers maintain consistent levels and optimize overall system performance.

Digital compressor processing
Digital limiter functionality
Digital noise gate processing
Assignable processing to Main and Aux buses

Integrated Graphic EQ and Spectrum Analyzer

The MW-1608 features advanced system optimization tools that make room tuning and feedback management straightforward and highly effective.

31-band digital graphic EQ
24-channel spectrum analyzer with Peak Hold
Wide and narrow EQ adjustment modes
Feedback management and system tuning capabilities

Comprehensive Connectivity

The MW-1608 offers extensive professional connectivity for integrating microphones, instruments, recording systems, stage monitoring systems, and external processors.

Balanced XLR and 1/4-inch TRS inputs
Balanced XLR and TRS main outputs
8 bus outputs
4 auxiliary outputs
Dual headphone outputs
USB-B interface for stereo recording and playback
48V phantom power support

Recall and Scene Management

The mixer provides digital memory functions that allow engineers to save and recall settings, improving efficiency during recurring performances and complex production environments.

10 global scene memories
24 effects memories
10 dynamics presets
6 graphic EQ presets
Four mute groups for efficient live control

Professional Construction

The MW-1608 is built for demanding professional environments, offering a robust chassis and intuitive control layout that withstands continuous use in live and studio applications.

Durable professional construction
Ergonomic control layout
IEC power connection
Universal power supply: 100–240V AC, 50/60Hz
Dimensions: 396 × 187 × 530 mm
Weight: Approximately 8 kg

Key Features

16-channel hybrid analog and digital mixer
8 mono channels and 4 stereo channels
True 8-bus architecture
Premium HiVolt microphone preamps
32-bit digital signal processing engine
31-band graphic EQ and spectrum analyzer
Studio-quality KORG effects processor
Digital compressor, limiter, and noise gate
USB stereo recording and playback
Scene memory and preset recall functions
Balanced professional inputs and outputs
Designed by Greg Mackie and Peter Watts

Why Choose the Korg SoundLink MW-1608?

The Korg SoundLink MW-1608 offers an exceptional combination of analog sound quality and modern digital functionality. Its premium preamps, advanced effects processing, true 8-bus architecture, and intuitive hands-on workflow make it an ideal solution for live performances, recording studios, broadcast production, and professional audio installations. For engineers who appreciate the immediacy of analog mixing but require advanced digital processing capabilities, the MW-1608 delivers the best of both worlds in a highly versatile and professional package.
