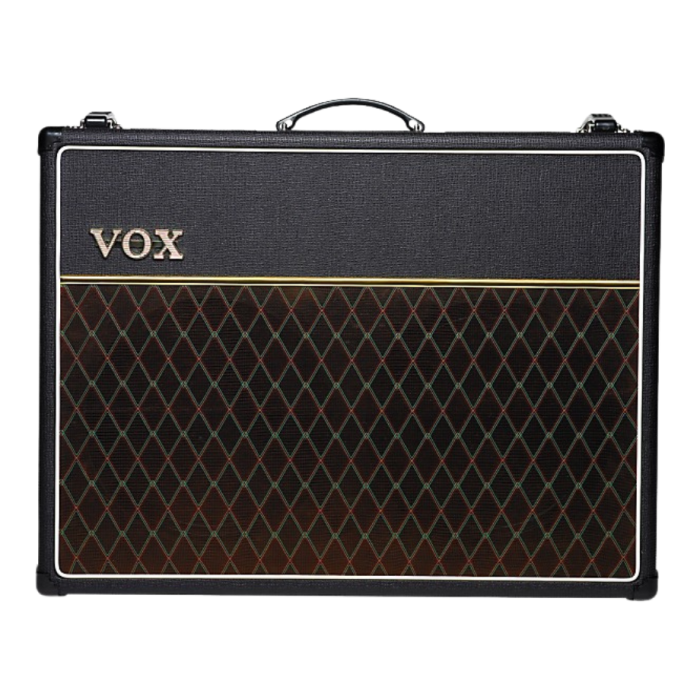

VOX AC30C2 Custom 30W All-Tube 2x12 Guitar Combo Amplifier
Brand
VOX
The Vox AC30 Custom (AC30C2) builds on the legendary heritage of the original 1959 AC30, delivering the quintessential British tube chime and harmonic overdrive that defined generations of rock music. Powered by four EL84 power tubes and three 12AX7 preamp tubes, the AC30 Custom pumps out 30 watts of rich, touch-sensitive all-tube power through two 12-inch Celestion G12M Greenback speakers.
Experience the legendary tone that defined the British Invasion with the VOX AC30 Custom All-Tube Guitar Amplifier. As one of the most iconic amplifiers in music history, the AC30 Custom delivers an unmistakable chime, rich harmonic complexity, and dynamic touch sensitivity that has made it the weapon of choice for world-class artists across generations.
Dual-Channel Versatility
The AC30 Custom features two independent channels—Normal and Top Boost—each equipped with its own High and Low inputs:
- Normal Channel: Provides a pure, ultra-transparent signal path that lets the true character of your guitar and playing style shine through.
- Top Boost Channel: Driven by interactive Treble and Bass tone controls, this channel delivers the signature VOX mid-forward crunch and legendary top-end chime.
Onboard Classic Effects
Shape your sound further using the AC30's built-in analog-style effects:
- Spring Reverb: Features a dedicated Reverb Level and Reverb Tone control to add spacious depth, from subtle warmth to ambient wash.
- Tremolo: A classic tremolo circuit featuring adjustable Speed and Depth controls to add pulsing motion and vintage swampy vibe to your tone.
- Tone Cut: A global power-amp control that rolls off high frequencies across both channels for smoother, warmer overdrive characteristics.
Key Features and Specifications
- All-Tube Power: Driven by a quartet of EL84 power tubes and robust preamp valves to deliver 30 watts of pure Class A punch.

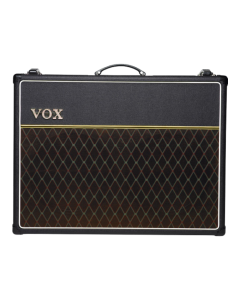

- Speaker Configuration: Available in two configurations—loaded with either two 12-inch Celestion G12M Greenback speakers (AC30C2) or two 12-inch Celestion Alnico Blue speakers (AC30C2X).
- Expansion Ready: Equipped with Extension and External Speaker output jacks for driving larger speaker cabinets when needed.
- Effects Loop: Includes a rear-panel FX Send and Return loop for seamless integration with your favorite external pedals and processors.
- Footswitch Support: Compatible with the optional VFS2A footswitch for hands-free switching of Reverb and Tremolo effects.
Engineered for Stage and Studio
Wrapped in classic black vinyl with traditional diamond grille cloth and gold accents, the VOX AC30 Custom stands as a timeless professional workhorse built to handle the demands of rigorous touring schedules and demanding recording sessions alike.
Technical Specifications:
- Amplifier Type: All-Tube Combo
- Output Power: 30 Watts RMS (into 16 Ohms)
- Tube Complement: Power: 4 x EL84 (Preamp tube details vary by production run)
- Speakers: 2 x 12" Celestion G12M Greenback (AC30C2) or Celestion Alnico Blue (AC30C2X)
- Inputs: Normal High/Low, Top Boost High/Low, FX Return Jack, Footswitch Jack
- Outputs: External Speaker Jack, Extension Speaker Jack, FX Send Jack
- Controls: Master Volume, Master Tone Cut, Normal Volume, Top Boost Volume, Top Boost Bass, Top Boost Treble, Reverb Tone, Reverb Level, Tremolo Speed, Tremolo Depth
- Dimensions (W x D x H): 702 x 265 x 556 mm (27.64 x 10.43 x 21.89 inches)
- Weight: 32 kg (70.99 lbs)
| Brands | VOX |
|---|
