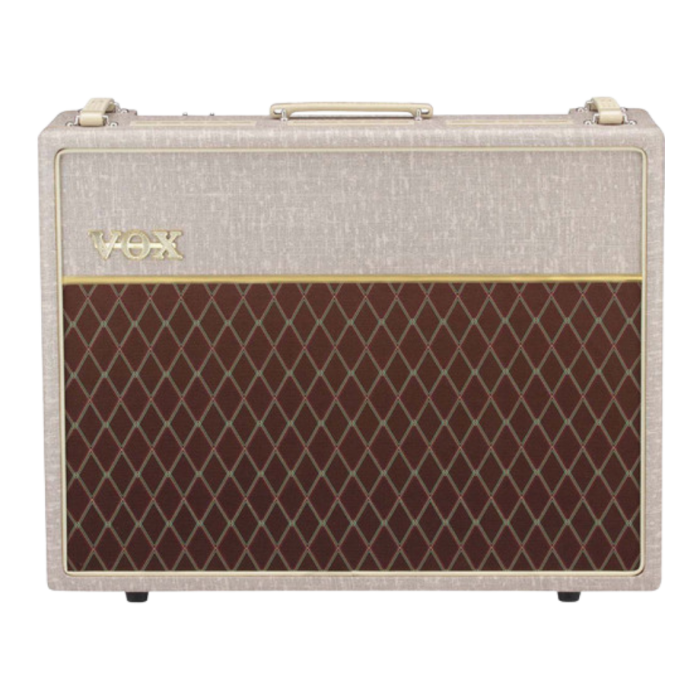

VOX AC30HW2X Hand-Wired 30W 2x12 Tube Guitar Combo Amplifier

Experience the pinnacle of British guitar amplification with the VOX AC30HW2X Hand-Wired Tube Amplifier Combo. Representing a triumphant return to traditional craftsmanship, this hand-wired powerhouse delivers the legendary, chime-filled tone that shaped decades of rock and roll, paired with elite premium component upgrades designed for today’s most discerning professional guitarists.

True Point-to-Point Hand-Wired Construction

Built with meticulous attention to detail, the AC30HW2X features true point-to-point hand-wired turret board construction. Eschewing printed circuit boards in favor of turret board wiring and premium-grade components, this pure all-tube signal path ensures maximum signal integrity, stunning touch-sensitivity, and zero unwanted electrical interference for an authentically vintage playing experience.

Legendary Celestion Alnico Blue Speakers

The "X" designation identifies this premier model as being factory-loaded with two legendary 12-inch Celestion Alnico Blue speakers. Celebrated as the definitive voice of the classic AC30, these English-designed alnico speakers offer lightning-fast transient response, rich harmonic complexity, and a gorgeous, compressed breakup when pushed hard.

All-Tube Signal Path and B+ Power Supply

Powered by a tube complement consisting of three 12AX7 preamp valves, four EL84 power tubes, and a GZ34 rectifier tube, the AC30HW2X delivers 30 watts of pure Class A British tone. Incorporating a heavy-duty 15H filter choke and high-voltage filter caps, the power supply faithfully replicates the sought-after natural "sag" and dynamic compression of vintage JMI-era Vox amplifiers.

Two Versatile Channels with Modern Enhancements

The amplifier features two distinct channels—Normal and Top Boost—offering an incredible array of tonal options:

• Normal Channel: Outfitted with an independent Bright switch to add extra sparkle and clarity when needed.
• Top Boost Channel: Features traditional interactive Treble and Bass controls alongside a foot-switchable Hot/Cool switch. The "Cool" setting provides an authentic vintage response, while the "Hot" setting bypasses the tone stack to increase gain and drive your tone into modern crunch territory.

Key Features and Specifications

• Output Power: Switchable 30 Watts or 15 Watts RMS (Pentode / Triode Op/Mode switch).
• Speaker Configuration: 2 x 12-inch Celestion Alnico Blue (8 ohms each).
• Global Controls: Master Volume with a true Master Volume Bypass switch, and the classic interactive Tone Cut control.
• Cabinet Design: Premium birch-ply cabinet wrapped in vintage fawn/black vinyl with traditional diamond grille cloth and heavy-duty handles.
• Included Accessories: VFS1 footswitch (for controlling the Hot/Cool mode) and a custom-fitted dust cover.

Engineered for Tone Connoisseurs

The VOX AC30HW2X marries vintage soul with modern flexibility. Whether you are seeking sparkling clean headroom, touch-sensitive blues dynamics, or roaring classic rock overdrive, this hand-wired masterpiece stands as the ultimate expression of the legendary AC30 lineage.

Technical Specifications:

• Amplifier Type: Hand-Wired All-Tube Combo
• Output Power: 30 Watts RMS (into 16 Ohms)
• Tube Complement: Preamp: 3 x 12AX7; Power: 4 x EL84; Rectifier: GZ34
• Speakers: 2 x 12" Celestion Alnico Blue
• Inputs: Normal Channel (High and Low), Top Boost Channel (High and Low), Footswitch Jack
• Outputs: Extension Speaker Jacks, External Speaker Jacks
• Controls: Normal Volume, Top Boost Volume, Treble, Bass, Hot/Cool Switch, Tone Cut, Master Volume, Master Volume Bypass, Op/Mode (30W / 15W)
• Dimensions (W x D x H): 702 x 265 x 556 mm (27.64 x 10.43 x 21.89 inches)
• Weight: 33.2 kg (73.19 lbs)
