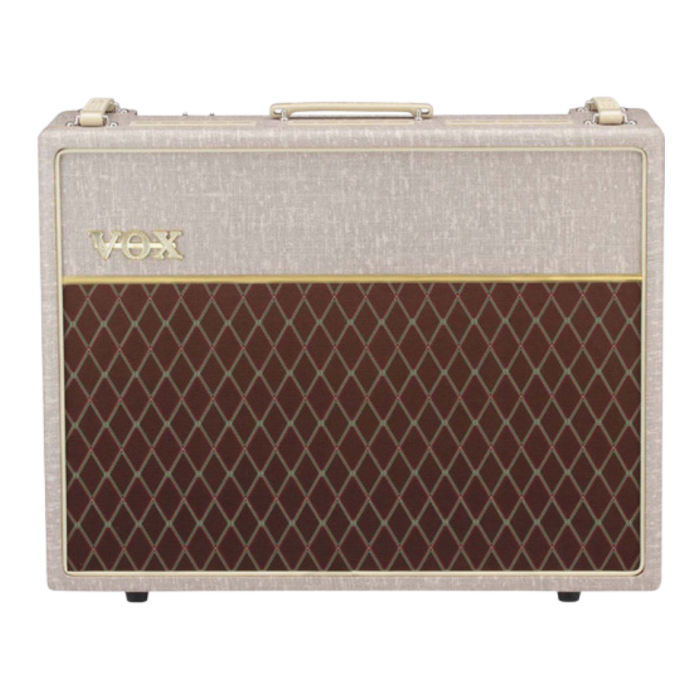

Vox AC30HW2 Hand-Wired 30-Watt 2x12 All-Tube Combo Guitar Amplifier
Brand
VOX
The Vox AC30HW2 Hand-Wired combo amplifier features meticulous point-to-point turret board construction and a pair of 12-inch Celestion G12M Greenback speakers to deliver the ultimate authentic British tone. Powered by four EL84 power tubes, three 12AX7 preamp tubes, and a GZ34 rectifier tube, it provides 30 watts of pure, dynamic tube power with a switchable 15/30W output mode. Equipped with dual Normal and Top Boost channels, a Hot/Cool gain switch, a bypassable Master Volume, and classic fawn vinyl casing, this flagship hand-wired amp offers uncompromising sonic purity for professional guitarists.
Experience the absolute pinnacle of vintage British valve tone with the VOX AC30HW2 Hand-Wired Tube Guitar Amplifier. Meticulously built using traditional turret board point-to-point wiring and premium-grade components, this 30-watt all-tube combo delivers legendary, uncompromised audio fidelity, rich harmonic saturation, and touch-sensitive dynamics for the ultimate tone purist.
Why Choose the VOX AC30HW2?
For guitarists chasing the authentic sound of 1960s British rock history, standard printed circuit board amplifiers often fall short of capturing true tube sag and transparent signal response. VOX engineered the AC30HW2 using painstaking hand-wired turret board construction—bypassing printed circuit traces entirely. Paired with dual Celestion Greenback speakers and a robust all-tube signal path, this amplifier provides extraordinary clarity, dynamic response, and boutique craftsmanship.
Key Features & Specifications
- True Hand-Wired Turret Board Construction: Built entirely without printed circuit boards for maximum signal transparency, pristine clarity, and long-term reliability.
- All-Tube Signal Path: Driven by 3 x ECC83/12AX7 preamp tubes, 4 x EL84 power tubes, and an authentic GZ34 rectifier tube for classic valve warmth and rich compression.
- OP/Mode Power Attenuation Switch: Seamlessly toggle between full 30 watts and 15 watts of RMS output to achieve saturated power-amp breakup at lower, manageable volumes.
- Dual Celestion G12M Greenback Speakers: Outfitted with two 12-inch 16-ohm Greenback speakers housed in a solid-braced birch plywood cabinet with a natural high-frequency diffuser.
- Traditional Two-Channel Design: Features a Normal channel (with a Bright switch) and a Top Boost channel (with interactive Bass and Treble controls plus a Hot/Cool gain switch).
- Master Volume & Bypass Switch: Includes a master volume control alongside a Master Volume Bypass feature that completely removes the master section from the circuit for raw, vintage tone.
- Vintage Fawn Vinyl Aesthetics: Wrapped in vintage-correct fawn-colored vinyl with brown diamond grille cloth and retro cream chickenhead knobs.
Boutique Flexibility: Hot/Cool and OP/Mode Switching
The AC30HW2 expands upon classic designs by incorporating modern professional flexibility. The Hot/Cool switch on the Top Boost channel increases gain for a thicker, punchier overdrive, while the rear-panel OP/Mode switch halves the output wattage from 30W to 15W, allowing you to push the power valves hard without overwhelming your stage or studio environment.
Technical Specifications
| Model: | VOX AC30HW2 Hand-Wired Tube Amplifier |
| Output Power: | 30 Watts RMS into 8/16 Ohms (switchable to 15 Watts) |
| Tube Complement: | Preamp: 3 x ECC83/12AX7 | Power: 4 x EL84 | Rectifier: 1 x GZ34 |
| Speakers: | 2 x 12" 16-ohm Celestion G12M Greenback Speakers |
| Inputs: | Normal Jack (High/Low), Top Boost Jack (High/Low), Footswitch Jack |
| Outputs: | External Loudspeaker Jack, Extension Loudspeaker Jack |
| Controls: | Normal Volume, Top Boost Volume, Treble, Bass, Master Tone Cut, Master Volume, Bright Switch, Hot/Cool Switch, OP/Mode Switch, Master Volume Bypass |
| Dimensions (W x D x H): | 27.76 x 10.43 x 21.85 inches (705 x 265 x 555 mm) |
| Weight: | 70.5 lbs (32.0 kg) |
What’s Included in the Box?
To protect your boutique investment, the VOX AC30HW2 comes bundled with a custom-fit Dust Cover and a single-button VFS1 Footswitch for remote control functions.
Experience the ultimate expression of hand-wired tube performance and Greenback punch. Order your VOX AC30HW2 Hand-Wired Tube Guitar Amplifier from Gigstore today!
| Brands | VOX |
|---|
