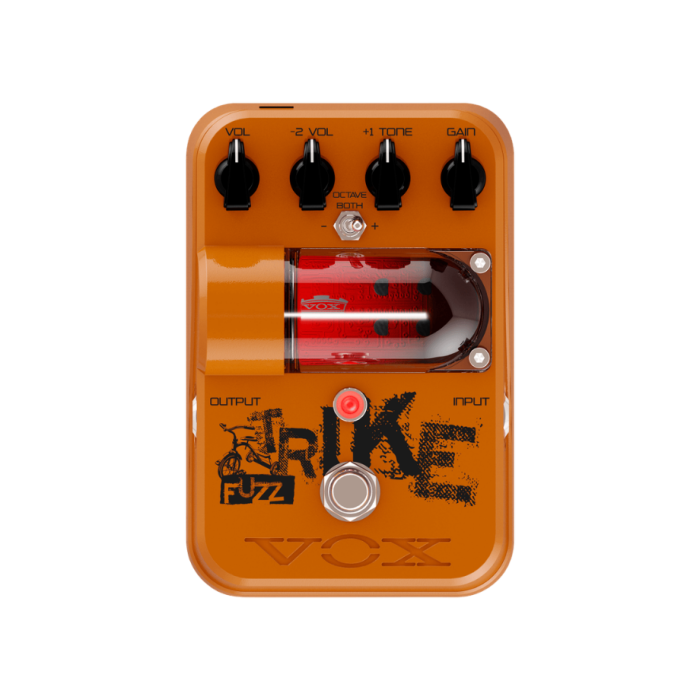

Vox Tone Garage Trike Fuzz Octave Fuzz Guitar Effects Pedal
Brand
VOX
Unleash wild octave-fuzz textures with the Vox Tone Garage Trike Fuzz, featuring pure discrete analog circuitry, 3 switchable octave modes (Octave Up, Octave Down, and +2 Octaves Down), and true bypass switching.
Unleash a massive wall of thick, vintage-flavored fuzz infused with multi-octave versatility using the Vox Trike Fuzz Guitar Effects Pedal. Part of Vox's acclaimed Tone Garage series, this unique stompbox goes beyond standard fuzz pedals by offering both upward and downward octave generation for expansive, synth-like textures and rich harmonic saturation.
The Trike Fuzz utilizes specially selected diodes and an innovative circuit design that operates downward octave circuits in series while combining them in parallel with an upward octave at the output stage. A dedicated three-way octave selector lets you easily choose between +1 octave up, -1 & -2 octaves down, or a combined multi-octave setting. Complete with a dedicated tone control for the upper octave and volume control for the lower octave, it delivers a massive variety of unorthodox, highly musical fuzz tones unattainable with conventional pedals.
Key Features of the Vox Trike Fuzz
- Multi-Octave Fuzz Generation: Combines rich vintage fuzz with selectable octave modes ranging from one octave up to two octaves down.
- 3-Way Octave Switch: Easily toggle between upper octave (+1), lower octaves (-1 and -2), or simultaneous upward and downward octaves.
- Independent Tone & Volume Controls: Features dedicated tone adjustment for the +1 octave and volume control for the -2 octave to fine-tune your blend.
- Unique Series/Parallel Circuitry: Downward octave circuits operate in series and mix in parallel with the upward octave for a diverse spectrum of tones.
- Rugged Road-Ready Chassis: Housed in a durable die-cast enclosure built to withstand the demands of heavy gigging and touring.
Technical Specifications
- Effect Type: Octave Fuzz Distortion
- Input Impedance: 680k ohms
- Output Impedance: 2.2k ohms
- Connections: 1 x 1/4" Input Jack, 1 x 1/4" Output Jack
- Power Supply: 6 x AA batteries or optional 9V AC adapter (DC 9V)
- Current Consumption: 14 mA
- Battery Life: Approximately 280 hours (using alkaline batteries)
- Dimensions (W x D x H): 87 x 132 x 63 mm (3.43 x 5.20 x 2.48 inches)
- Weight: 420 g / 14.81 oz (excluding batteries)
Push your tone into uncharted territory. The Vox Trike Fuzz delivers thick, retro fuzz character combined with innovative multi-octave routing for a truly unique sonic signature.
