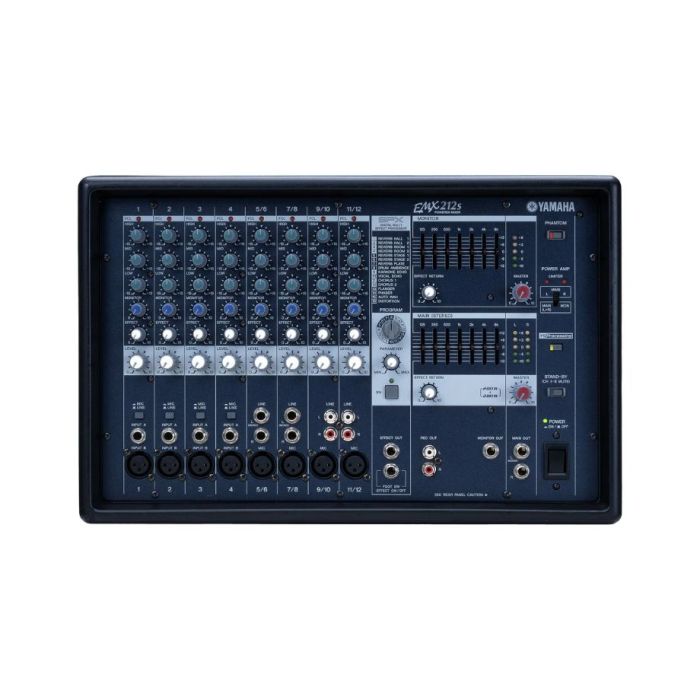

Yamaha EMX212S 12-Channel Powered Analog Mixer
Brand
YAMAHA
The Yamaha EMX212S is a portable, high-performance 12-channel powered mixer featuring dual 220W amplifiers and integrated SPX digital effects. Designed for fast setup and reliability, its "lunchbox" style and Feedback Channel Locating (FCL) system make it the ideal all-in-one solution for small venues, schools, and houses of worship in the UAE.
What is the Yamaha EMX212S Powered Mixer?
The Yamaha EMX212S is a portable 12-input powered mixer featuring dual 220W amplifiers and integrated SPX digital effects. Designed for live performance, it includes 4 mono mic/line channels and 4 hybrid stereo channels, allowing for up to 8 microphone inputs simultaneously. With its built-in 7-band graphic EQs and Feedback Channel Locator (FCL) system, it provides a complete sound reinforcement solution for schools, houses of worship, and small-to-medium venues in the UAE. Available at Gigstore.
Portable Power, Professional Sound: Yamaha EMX212S Powered Mixer
The Yamaha EMX212S is engineered to deliver high-fidelity audio with maximum convenience. Available at Gigstore, this "box-type" powered mixer combines a versatile mixing surface with high-efficiency power amplification. Whether you are setting up a portable PA system in Dubai or managing an installation in Abu Dhabi, the EMX212S provides the clean, punchy output Yamaha is famous for, all within a lightweight 10kg cabinet.
A standout feature of the EMX212S is its Flexible Power Mode. A simple switch allows you to configure the dual internal amplifiers to run in stereo for your main speakers, or in a "Main + Monitor" configuration. This allows you to drive your front-of-house sound and a dedicated stage monitor mix from a single unit, significantly reducing the amount of gear you need to transport across the UAE.
Advanced Feedback Control and SPX Effects
Live sound can be unpredictable, but the EMX212S gives you the tools to stay in control. It features Yamaha’s exclusive Feedback Channel Locator (FCL) system; indicators on each channel light up to show exactly where feedback is occurring, allowing for instant adjustment. Additionally, the onboard SPX multi-effects processor provides 16 studio-quality programs—including reverb, echo, and chorus—to add professional polish to your vocals and instruments.
- High-Efficiency Amplification: Delivers 220W + 220W @ 4 ohms with minimal heat and power consumption.
- 12 Versatile Inputs: 4 mono mic/line channels and 4 stereo/mono hybrid channels for flexible connectivity.
- 7-Band Graphic EQs: Dual equalizers for precise tuning of both the main and monitor outputs.
- Yamaha Speaker Processing (YSP): Optimized signal path for enhanced performance when used with Yamaha speakers.
- Rugged & Lightweight: Impact-resistant cabinet with integrated handles for easy transport in the UAE.
Technical Specifications
| Feature | Specification Details |
|---|---|
| Output Power (4 ohms) | 220W + 220W (0.5% THD @ 1kHz) |
| Output Power (8 ohms) | 130W + 130W |
| Total Inputs | 12 Channels (4 Mono + 4 Stereo/Mono) |
| Mic Inputs | Up to 8 XLR (with +15V Phantom Power) |
| Onboard Effects | SPX Digital (16 Programs, 32-bit Processing) |
| Graphic EQ | Dual 7-Band (125Hz - 8kHz) |
| Dimensions (W x H x D) | 442 x 284 x 264 mm (7U) |
| Net Weight | 10 kg (22 lbs) |
Why Purchase the Yamaha EMX212S from Gigstore?
As the UAE’s premier destination for live sound and professional audio, Gigstore ensures you receive genuine equipment with localized support. When you order the Yamaha EMX212S from us, you benefit from:
- Guaranteed Authenticity: Sourced directly through authorized Yamaha regional distributors.
- Insured UAE Delivery: Reliable shipping to your door in Dubai, Abu Dhabi, and the Northern Emirates.
- Expert Product Guidance: Our audio specialists can help you pair this mixer with the perfect speakers for your specific application.
Frequently Asked Questions
Can I use this mixer to power passive speakers?
Yes, the EMX212S is a powered mixer, meaning it has internal amplifiers. It is designed specifically to drive passive speakers via its Speakon or 1/4" phone jack outputs.
Does it have phantom power for condenser microphones?
Yes, it provides +15V phantom power on all 8 mic inputs, making it compatible with many condenser microphones and active DI boxes used in the UAE.
Is this mixer rack-mountable?
Yes. With the optional RK512 rack-mount kit (sold separately at Gigstore), the EMX212S can be securely mounted into a standard 19-inch equipment rack.
