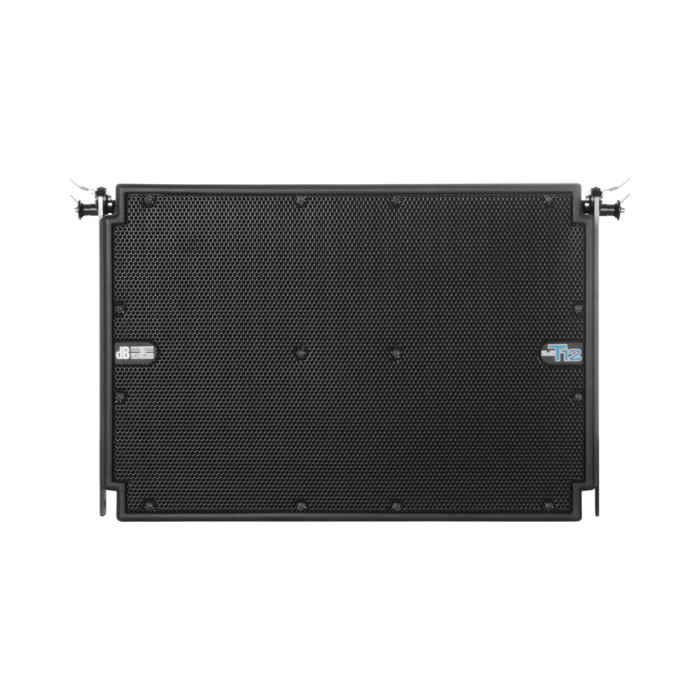

dBTechnologies DVA T12 3-Way Active Line Array Module
Brand
D B TECHNOLOGIES
The dBTechnologies DVA T12 is a 3-way active line array module engineered to provide long-throw capability, precise coverage, and high sound pressure levels for large-scale live sound reinforcement and venue installations. Powered by a 1410W RMS Digipro G2 Class-D tri-amped system with integrated 56-bit DSP, it combines a lightweight polypropylene enclosure with advanced acoustic coupling for rapid deployment and scalable array setups.
The dBTechnologies DVA T12 is a high-performance 3-way active line array module designed to deliver exceptional sound pressure, wide frequency response, and precise coverage for large-scale live events, touring productions, and permanent installations. Delivering advanced digital amplification and sophisticated acoustic engineering in a lightweight, compact footprint, it sets a benchmark for professional sound reinforcement.
Advanced 3-Way Acoustic Design & Components
The DVA T12 features a tri-amped architecture powered by individual digital amplifiers optimized for each frequency band: a 500 W amplifier for the 12" neodymium woofer, a 500 W amplifier for two 6.5" midrange neodymium speakers, and a 250 W amplifier for two 1" high-frequency neodymium drivers coupled to constant directivity horns. This precise separation ensures pristine vocal clarity, detailed midrange response, and powerful low-end projection.
High-Efficiency Digipro® Class-D Amplification & DSP
Driven by an integrated switching-mode power supply with PFC and lightweight Digipro Class-D amplifiers, the module achieves an impressive maximum SPL of 136 dB. Advanced 56-bit DSP processing handles active crossover functions, phase alignment, and linear phase FIR filters, guaranteeing perfectly coherent wavefront propagation across long throw distances.
Integrated Hardware & Network Telemetry
Constructed from robust polypropylene reinforced with an internal metal structure, the cabinet combines extreme durability with a light total weight of 29.6 kg (65.26 lbs). An integrated 3-point rigging system allows for fast, secure fly-bar adjustments. Furthermore, built-in RDNet ports enable real-time remote monitoring and control of levels, limiters, and system parameters via professional software.
Technical Specifications
| Speaker Type: | 3-Way Active Line Array Module |
| Usable Bandwidth [-10 dB]: | 60 – 19,000 Hz |
| Max SPL: | 136 dB |
| High-Frequency Transducers (HF): | 2x 1”, 1.4” Voice Coil, Neodymium (Titanium Dome) |
| Midrange Transducers (MF): | 2x 6.5”, 2” Voice Coil, Neodymium |
| Low-Frequency Transducer (LF): | 1x 12”, 3” Voice Coil, Neodymium |
| Horizontal Directivity: | 100° |
| Vertical Directivity: | 10° (Depending on Array Length) |
| Amplifier Technology: | Digipro® G2 (Class-D) |
| Amplifier Program Power: | 1250 W (500 W LF + 500 W MF + 250 W HF) |
| Processor & Controller: | DSP 56-bit / 24-bit 48 kHz AD/DA Converter |
| Network & Connectivity: | RDNet Remote Control (RJ45 IN/OUT) |
| Housing Construction: | Polypropylene PP (Reinforced Internal Structure) |
| Rigging System: | Integrated Hardware (3-Point Rigging) |
| Dimensions (W x H x D): | 580 mm x 386 mm x 430 mm (22.83” x 15.2” x 16.93”) |
| Weight: | 29.6 kg (65.26 lbs) |
