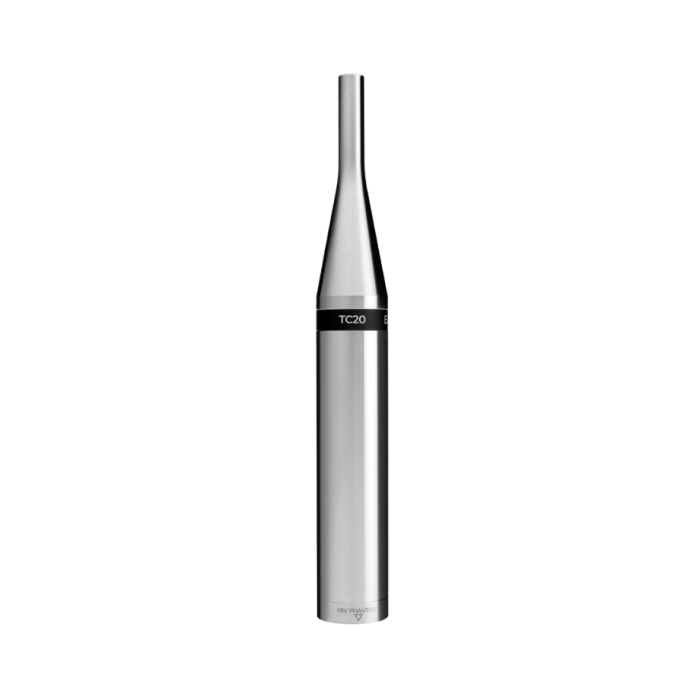

Earthworks TC20 20kHz Omnidirectional Condenser Microphone
Brand
Earthworks Audio
Looking for uncolored sound capture on loud acoustic sources without preamp clipping? The Earthworks TC20 (Time Coherent) is a high-definition omnidirectional condenser microphone specifically designed to handle high sound pressure levels across studio recording and live stage applications.
Tackle high-SPL environments with breathtaking clarity, lightning-fast transient response, and zero proximity effect using the Earthworks TC20 Omnidirectional Condenser Microphone. Designed specifically for tracking high-energy sources without overloading preamplifiers, this Time-Coherent free-field microphone delivers pristine, uncolored audio capture for drums, percussion, and amplified instruments.
Why Choose the Earthworks TC20?
Recording loud instruments often forces engineers to compromise between headroom and detail. The Earthworks TC20 eliminates this trade-off by combining a massive 150 dB SPL handling capacity with a smooth, linear frequency response spanning from 9Hz to 20kHz. Because of its true omnidirectional polar pattern, it suffers from zero proximity effect—allowing you to place it right up against guitar cabinets, inside kick drums, or over a drum kit while maintaining a natural, focused, and immersive soundstage.
Key Performance Features
- Extreme High-SPL Handling: Effortlessly manages sound pressure levels up to 150 dB SPL, allowing close-miking of thunderous sources without distortion or clipping.
- Time-Coherent Frequency Response: Delivers a ruler-flat response from 9Hz to 20kHz, ensuring absolute phase accuracy and true-to-life transient reproduction.
- Lightning-Fast Transient Speed: Swiftly tracks rapid acoustic attacks and complex percussion hits with zero mechanical smearing or lag.
- True Omnidirectional Directivity: Flawless 360-degree pickup consistency captures natural room reflections and provides uniform off-axis sound.
- Zero Proximity Effect: Maintains a consistent tonal balance regardless of how close the microphone is positioned to the source.
- Tour-Grade Durability: Precision-machined from high-grade stainless steel to withstand the grueling demands of live touring and busy professional studios.
Technical Specifications
| Microphone Type | Time-Coherent Condenser (Omni) |
|---|---|
| Polar Pattern | Omnidirectional |
| Frequency Response | 9Hz – 20kHz (+1/-3 dB) |
| Sensitivity | 8 mV/Pa (-42 dBV/Pa) |
| Max Acoustic Input | 150 dB SPL |
| Signal-to-Noise Ratio | 26 dB SPL equivalent (A-weighted) |
| Power Requirements | 24–48V Phantom Power, 10mA |
| Output Impedance | 65Ω balanced (between pins 2 & 3) |
| Dimensions & Weight | Length: 6.49" (165mm) x Diameter: 0.86" (22mm); Weight: 0.35 lbs (158g) |
Ideal Applications
Engineered for professional recording studios, live sound engineers, and production houses across Dubai, Abu Dhabi, and the UAE, the Earthworks TC20 is the ultimate high-definition solution for capturing drum overheads, close-miked guitar and bass cabinets, brass instruments, and high-energy percussion.
