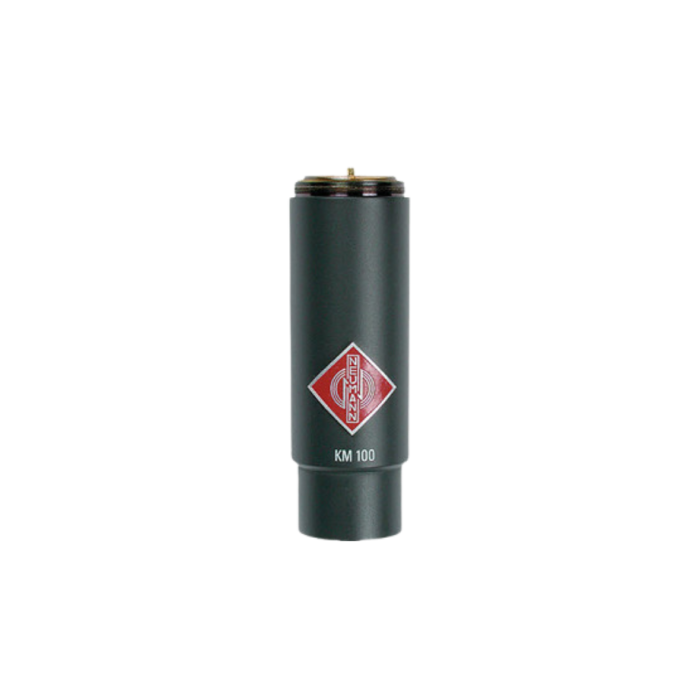

Neumann KM 100 Modular Small-Diaphragm Condenser Microphone Output Stage

Neumann KM 100 Modular Output Stage for KM 100 Series Microphone Capsules

The Neumann KM 100 is the active output stage of the historic KM 100 modular microphone system, developed to provide exceptional flexibility and uncompromising audio performance for professional recording applications. Designed to operate with Neumann's interchangeable AK Series active capsules, the KM 100 enables engineers to configure microphones with different polar patterns while maintaining the renowned sonic transparency, low self-noise, and precision expected from Neumann small-diaphragm condenser technology.

The modular architecture allows the KM 100 output stage to be paired with compatible AK capsule heads, including omnidirectional, cardioid, wide-angle cardioid, hypercardioid, figure-8, and speech-optimized variants. This versatility made the KM 100 series a preferred choice for studio recording, classical music production, broadcast, film, television, live sound, and location recording where different directional characteristics were required without changing the complete microphone.

Modular Microphone System

The KM 100 forms the foundation of Neumann's historic modular miniature microphone system. Instead of using a fixed capsule, the active output stage accepts interchangeable AK Series capsules, allowing users to quickly adapt the microphone for specific recording applications. This modular approach provides exceptional flexibility while maintaining consistent audio quality across the entire microphone system.

The system also supports a comprehensive range of extension cables, swivel mounts, remote accessories, stereo bars, suspension mounts, and installation hardware, making it suitable for discreet microphone placement in concert halls, broadcast studios, theatres, film productions, and live performance environments.

Professional Audio Performance

Engineered with Neumann's transformerless circuitry, the KM 100 delivers clean, transparent signal transmission with excellent transient response, high dynamic range, and reliable operation. Powered by standard 48 V phantom power (P48), the output stage ensures consistent performance across demanding professional recording environments.

The compact design minimizes visual impact while providing maximum positioning flexibility for applications where discreet microphone placement is essential.

Compatible AK Series Capsules

• AK 20 Figure-8 Capsule
• AK 30 Omnidirectional Capsule
• AK 40 Cardioid Capsule
• AK 43 Wide-Angle Cardioid Capsule
• AK 45 Speech Cardioid Capsule
• AK 50 Hypercardioid Capsule

Key Features

• Active output stage for the Neumann KM 100 modular microphone system.
• Compatible with interchangeable AK Series active capsules.
• Transformerless output circuitry for transparent audio reproduction.
• Powered by standard 48 V phantom power (P48).
• Compact and lightweight professional design.
• Supports flexible modular microphone configurations.
• Compatible with Neumann extension cables and mounting accessories.
• Ideal for studio, broadcast, film, classical music, and location recording.
• Precision-engineered for long-term professional use.

Ideal Applications

• Professional studio recording
• Broadcast and television production
• Classical music recording
• Orchestral and choir recording
• Acoustic instrument recording
• Film and location sound
• Stereo and surround microphone arrays
• Speech and dialogue recording
• Live sound reinforcement

Technical Specifications

• Product Type: Active modular microphone output stage
• Series: Neumann KM 100 Modular Microphone System
• Compatible Capsules: AK 20, AK 30, AK 40, AK 43, AK 45, AK 50
• Output Circuit: Transformerless
• Power Requirement: 48 V phantom power (P48)
• Rated Impedance: 50 Ω
• Rated Load Impedance: 1 kΩ
• Output Connector: 3-pin XLR
• Diameter: 22 mm
• Length: Approximately 92 mm
• Weight: Approximately 80 g

Why Choose the Neumann KM 100?

The Neumann KM 100 is the core component of one of Neumann's most respected modular microphone systems. Its compatibility with multiple AK Series capsules allows audio professionals to create highly adaptable recording solutions for virtually any application. Combining transformerless electronics, compact construction, and Neumann's renowned engineering quality, the KM 100 remains an excellent choice for studios, broadcasters, classical recording engineers, and sound professionals seeking a versatile and reliable modular microphone platform.
