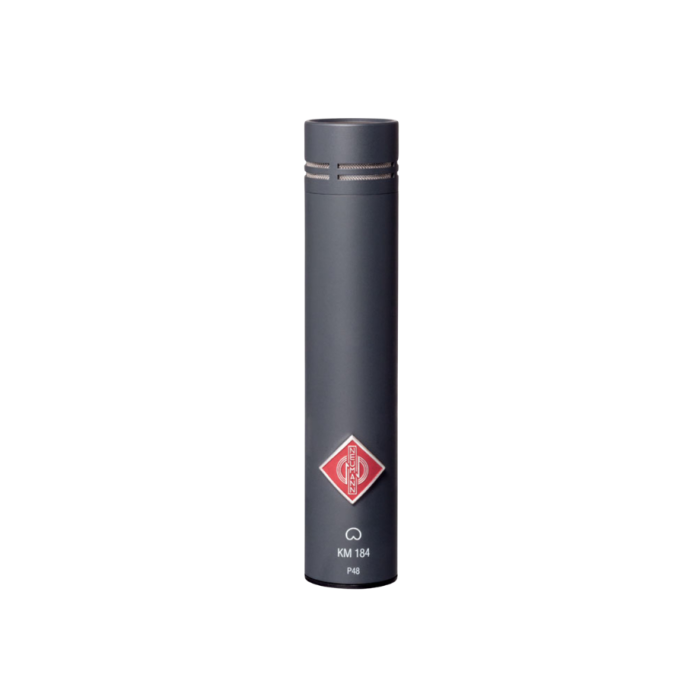

Neumann KM 184 mt Cardioid Small-Diaphragm Condenser Microphone – Matte Black

Neumann KM 184 mt Cardioid Small-Diaphragm Condenser Microphone

The Neumann KM 184 mt is a professional small-diaphragm condenser microphone from the renowned Neumann Series 180, finished in a non-reflective matte black coating. Featuring a frequency-independent cardioid polar pattern, the KM 184 mt delivers exceptionally transparent sound reproduction, outstanding transient response, and remarkably low self-noise. Its accurate off-axis performance and high sound pressure level capability have made it a worldwide standard for professional studio recording, live sound, broadcast, and location recording applications. Designed to capture the original acoustic performance without adding coloration, the KM 184 mt is trusted by recording engineers, musicians, broadcasters, and production professionals around the world.

As part of the non-modular Neumann Series 180, the KM 184 mt offers the legendary Neumann sound quality in a compact, cost-effective microphone design. Its transformerless electronics provide a wide dynamic range, excellent common-mode rejection, and exceptionally clean signal transmission, making it suitable for everything from delicate classical performances to high-SPL drum and percussion recordings.

Accurate Cardioid Polar Pattern

The KM 184 mt utilizes a pressure-gradient transducer with a frequency-independent cardioid pickup pattern. Rear rejection remains highly consistent across the frequency spectrum, while the microphone exhibits virtually no off-axis coloration over a wide pickup angle. This ensures natural tonal balance, accurate stereo imaging, and excellent isolation when multiple microphones are used simultaneously.

A gentle presence boost around 9 kHz adds clarity and definition without compromising the microphone's natural character, allowing instruments and acoustic sources to retain their authentic tonal qualities.

Professional Series 180 Performance

The Neumann Series 180 includes three fixed-pattern microphones: the KM 183 (omnidirectional), KM 184 (cardioid), and KM 185 (hypercardioid). Unlike the modular KM A and KM D systems, the Series 180 microphones feature a fixed capsule design, providing outstanding performance with a simplified and economical construction while maintaining Neumann's uncompromising engineering standards.

Transformerless Electronics

The KM 184 mt incorporates Neumann's transformerless output circuitry, delivering exceptional transient response, extended dynamic range, low distortion, and low output impedance. With a maximum SPL of 138 dB and the ability to drive cable lengths of up to 300 meters without significant transmission loss, the microphone performs reliably in demanding studio, broadcast, and live production environments.

Key Features

• Professional small-diaphragm condenser microphone.
• Neumann Series 180 fixed-capsule design.
• Frequency-independent cardioid polar pattern.
• Natural, transparent sound reproduction.
• Slight high-frequency presence boost for added clarity.
• Very low self-noise of only 13 dB-A.
• Maximum SPL of 138 dB.
• Transformerless output circuitry.
• Low-impedance output suitable for long cable runs.
• Matte black (mt) finish for discreet stage and broadcast use.

Ideal Applications

• Professional studio recording
• Acoustic guitar
• Piano recording
• Drum overheads
• Percussion recording
• Strings and orchestral instruments
• Woodwinds and brass
• Choir recording
• Broadcast and television production
• Stereo and surround microphone techniques
• Live sound reinforcement
• Location recording

Technical Specifications

• Product Type: Small-diaphragm condenser microphone
• Series: Neumann Series 180
• Model: KM 184 mt
• Acoustical Operating Principle: Pressure-gradient transducer
• Polar Pattern: Cardioid
• Frequency Response: 20 Hz – 20 kHz
• Sensitivity at 1 kHz: 15 mV/Pa ±1 dB
• Equivalent Noise Level (A-weighted): 13 dB-A
• Signal-to-Noise Ratio (A-weighted): 81 dB
• Maximum SPL (0.5% THD): 138 dB
• Maximum Output Voltage: 10 dBu
• Rated Impedance: 50 Ω
• Rated Load Impedance: 1 kΩ
• Power Requirement: 48 V Phantom Power (P48)
• Current Consumption: 3.2 mA
• Output Connector: 3-pin XLR
• Diameter: 22 mm
• Length: 107 mm
• Weight: Approximately 80 g
• Finish: Matte Black (mt)
• Manufacturer Part Number: 008389

Package Contents

• Neumann KM 184 mt Microphone
• Neumann WNS 100 Windscreen
• Neumann SG 21 bk Stand Mount Swivel

Why Choose the Neumann KM 184 mt?

The Neumann KM 184 mt is one of the industry's most respected small-diaphragm condenser microphones, offering exceptional accuracy, low noise, and reliable performance across an extensive range of recording applications. Its transparent cardioid response, transformerless electronics, high SPL capability, and compact matte black design make it an outstanding choice for professional recording engineers, broadcasters, live sound professionals, and musicians seeking authentic Neumann sound quality with uncompromising reliability.
