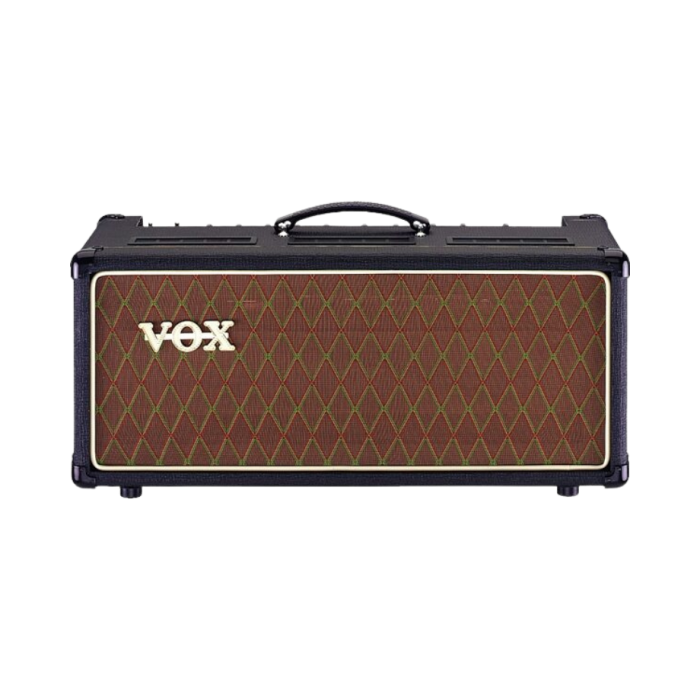

VOX AC30CCH Custom Classic 30W Tube Guitar Amplifier Head
Brand
VOX
The Vox AC30CCH Custom Classic Head brings legendary 30-watt all-tube British tone into a versatile, standalone amplifier head design. Powered by four EL84 power tubes and three 12AX7 preamp tubes, it features blendable Normal and Top Boost channels along with flexible tone-shaping controls. Equipped with switchable smoothing, customizable bias modes, built-in spring reverb, classic tremolo, and a switchable effects loop with level controls, this head delivers iconic Vox chime and rich tube overdrive with modern control and reliability.
Deliver the legendary, room-filling sound of the British Invasion in a flexible, road-ready head format with the VOX AC30CCH Custom Classic Tube Amplifier Head. Combining authentic all-tube architecture with modern boutique versatility, this 30-watt powerhouse packs the iconic chime, dynamic touch sensitivity, and rich harmonic overdrive of the classic AC30 into a convenient amplifier head designed to pair with your favorite speaker cabinets.
Why Choose the VOX AC30CCH?
For guitarists who want the unmistakable tone of an AC30 without the heavy lifting of a combo cabinet, the AC30CCH provides the ultimate solution. Engineered around a dual-channel framework featuring both a Normal channel and the iconic Top Boost channel, this amplifier utilizes a quartet of EL84 power tubes and a GZ34 rectifier tube to deliver authentic valve sag and responsive dynamics. Equipped with onboard spring reverb, tremolo, and advanced power-shaping controls, it offers professional tone-shaping flexibility for any stage or studio.
Key Features & Specifications
- Authentic All-Tube Circuitry: Powered by 3 x ECC83/12AX7 preamp tubes, 4 x EL84 power tubes, and a GZ34 rectifier tube for genuine British valve warmth and rich overdrive.
- 30 Watts RMS Output: Delivers high-headroom clean tones and powerful stage projection when paired with matching speaker cabinets (such as the Vox V212BN or V412BN).
- Two Interactive Channels: Features a versatile Normal channel (with a Brilliance switch) and the legendary Top Boost channel complete with interactive Treble and Bass EQ controls.
- Advanced Custom Classic Controls: Includes a Master Volume, power-stage Tone Cut, Output Bias switch (82 ohm vintage vs. 50 ohm hot), and a Smoothing switch for filtering options.
- Classic Effects Onboard: Features a lush, adjustable 3-spring Reverb (with Low/High Dwell switch) and vintage-style Tremolo with adjustable Speed and Depth.
- True Bypass Effects Loop: Easily integrate your favorite external stompboxes and pedalboards without signal degradation.
- Iconic VOX Aesthetics: Housed in a durable baltic birch enclosure wrapped in traditional black basket-weave vinyl with diamond grille cloth and gold accents.
Boutique Flexibility and Legendary Tone
The AC30CCH goes beyond standard vintage replicas by incorporating modern professional features. Use the Input Link switch to blend the Normal and Top Boost channels internally, or toggle the rear-panel Output Bias switch to instantly shift between a classic 82-ohm response and a hotter 50-ohm output. Combined with a global Master Volume and Tone Cut control, you can effortlessly dial in everything from pristine chimes to soaring, sustaining overdrive at any volume level.
Technical Specifications
| Model: | VOX AC30CCH Custom Classic Tube Amplifier Head |
| Output Power: | 30 Watts RMS into 8 or 16 Ohms (switchable) |
| Tube Complement: | Preamp: 3 x ECC83/12AX7 | Power: 4 x EL84 | Rectifier: 1 x GZ34 |
| Inputs: | Normal Input Jack, Top Boost Input Jack, Footswitch Jack, Effects Return |
| Outputs: | External Speaker Jack, Extension Speaker Jack, Effects Send |
| Controls: | Master Volume, Master Tone Cut, Normal Volume, Top Boost Volume, Bass, Treble, Reverb (Mix, Tone, Dwell), Tremolo (Speed, Depth), Input Link Switch, Brilliance Switch |
| Rear Panel Switches: | Output Select (8/16 Ohm), Output Bias (82/50 Ohm), Smoothing Switch (22uf/44uf), FX Loop Bypass |
| Dimensions (W x D x H): | 24.0" x 10.4" x 11.0" (610 x 264 x 279 mm) |
| Weight: | 42 lbs (19.0 kg) |
What’s Included in the Box?
The VOX AC30CCH amplifier head comes complete with the unit, power cable, and a two-button VF002 Footswitch for remote control of Reverb and Tremolo.
Bring legendary British tone and modular power to your rig. Order your VOX AC30CCH Custom Classic Tube Amplifier Head from Gigstore today!
