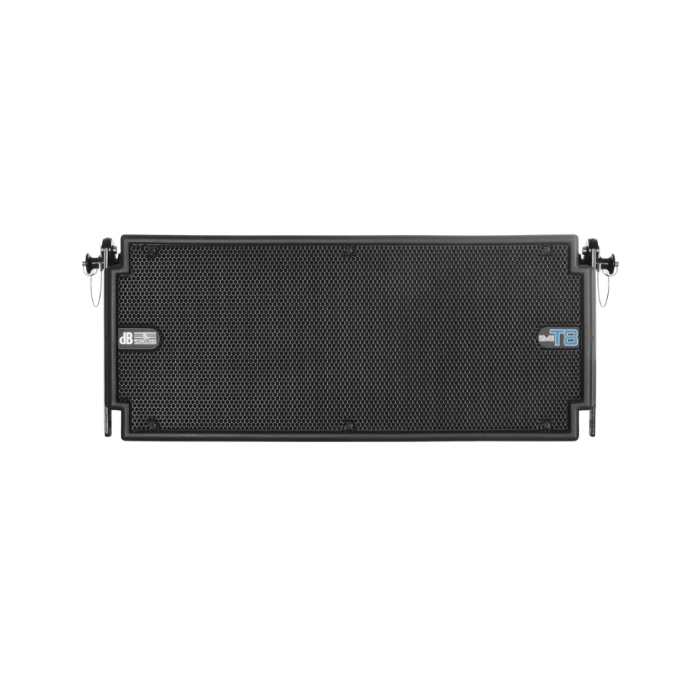

dBTechnologies DVA T8 3-Way Active Line Array Module
Brand
D B TECHNOLOGIES
Engineered for powerful sound reinforcement in touring rigs, theaters, houses of worship, and live event venues, the dBTechnologies DVA T8 sets a high benchmark for compact line array performance. Designed as a fully active 3-way system, the DVA T8 provides exceptional acoustic coverage, high SPL output, and precise audio detail in a ultra-lightweight, metal-reinforced polypropylene enclosure.
Engineered for exceptional acoustic performance and scalable touring deployment, the dBTechnologies DVA T8 is a professional 3-way active line array module that delivers high output, precise dispersion, and advanced digital networking capabilities in a remarkably lightweight and compact footprint.
Key Technologies & Features
- Tri-Amplified Digipro® G2 Performance: Powered by a lightweight, highly efficient Class-D digital amplifier system delivering a total of 700W RMS, providing dedicated amplification for high, mid, and low frequency bands without thermal throttling.
- Advanced 3-Way Transducer Design: Integrates a powerful 8" neodymium woofer, a dedicated 6.5" neodymium midrange driver with a phase plug horn, and two 1" neodymium compression drivers coupled to a constant directivity horn for crystal-clear high-frequency projection.
- RDNet Real-Time Control: Fully compatible with dBTechnologies' Aurora Net and RDNet software protocols, allowing remote monitoring of status, live metering, and precise DSP adjustments over standard data cables.
- Integrated Rigging Hardware: Features built-in fast-lock hardware and splay-angle adjustments directly on the cabinet, making array assembly and curvature setup fast, secure, and intuitive for touring professionals.
Technical Specifications Overview
| Speaker Type | 3-Way Active Line Array Module |
|---|---|
| Frequency Response [-10 dB] | 66 Hz – 18,000 Hz |
| Max SPL | 132 dB per unit |
| Low Frequency Driver (LF) | 8" Neodymium Woofer (2.5" voice coil) |
| Mid Frequency Driver (MF) | 6.5" Neodymium Speaker (2" voice coil) with Horn |
| High Frequency Driver (HF) | 2x 1" Neodymium Compression Drivers (1" voice coil) |
| Amplifier Technology | Digipro® G2 Class-D (700W RMS / 1400W Peak) |
| DSP Controller | 56-bit DSP with 24-bit/48 kHz AD/DA conversion |
| Networking & Control | RDNet Onboard (Data Inputs for Remote Control & Monitoring) |
| Enclosure Housing | Polypropylene PP reinforced with an internal metal structure |
| Dimensions (W x H x D) | 580 mm x 240 mm x 327 mm (22.83 in x 9.45 in x 12.87 in) |
| Weight | 14.2 kg (31.3 lbs) |
