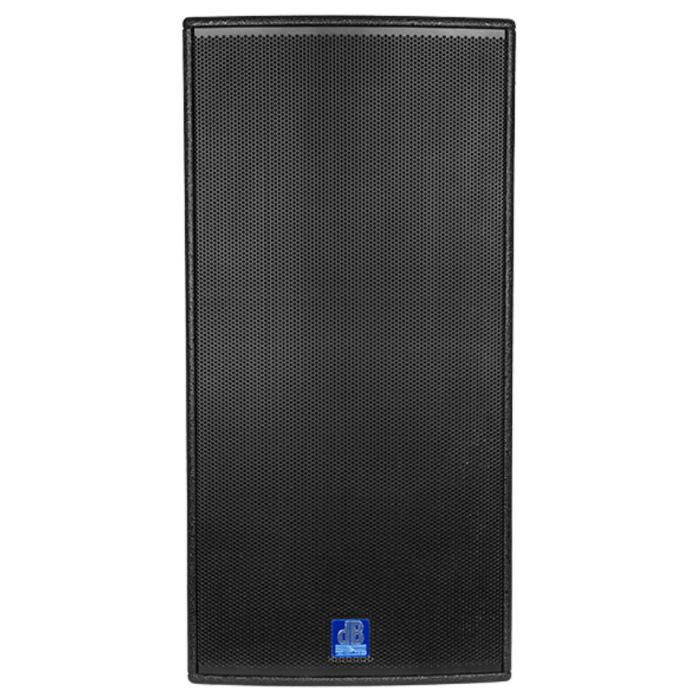

dBTechnologies Flexsys F315 3-Way Active Speaker
Brand
D B TECHNOLOGIES
The dBTechnologies Flexsys F315 is a high-output 1000W RMS 3-way active speaker featuring a 15-inch woofer, horn-loaded midrange, and 1-inch compression driver for full-range audio without requiring a standalone subwoofer.
Experience high-output sonic power with the dBTechnologies Flexsys F315, an advanced 3-way active speaker engineered for demanding live music, touring performances, and large-scale audio reinforcement. Combining a robust 15-inch bass reflex woofer, a dedicated horn-loaded 6.5-inch midrange driver, and a precise 1-inch compression driver, the Flexsys F315 delivers an exceptionally uniform, expansive composite sound stage with maximum clarity and impact.
Key Features & Advanced 3-Way Engineering
- Bi-Amped Digipro® Class-D Power: Driven by a powerful 1000W RMS (2000W Peak) digital amplifier equipped with an SMPS switched-mode power supply for high-efficiency energy delivery.
- Power Factor Corrector (PFC): Advanced power regulation ensures ultra-stable, consistent performance regardless of mains power fluctuations while providing worldwide voltage compatibility (90V to 265V).
- Specialized 3-Way Transducers: Dedicated components handle specific frequency ranges best, featuring a 15" LF woofer for deep lows, a horn-loaded 6.5" MF driver for smooth vocals, and a 1" CD horn HF driver for crisp highs.
- Integrated 24-bit/48kHz DSP: Synchronizes phase and time alignment across all drivers automatically, backed by dual active limiters (Peak, RMS, and Thermal) to protect against overloads.
Why Choose the Flexsys F315?
When you require deep, authoritative low-end punch combined with immaculate vocal projection and pristine high frequencies, the Flexsys F315 outperforms standard 2-way systems. Its optimized 3-way separation ensures that complex musical mixes remain transparent and clear even at high pressure levels reaching up to 131 dB SPL. Built into a durable multiplex housing, it is built to handle the rigorous demands of mobile setups, touring rigs, and permanent venue installations.
Technical Specifications
| Speaker Type | 3-Way Active Speaker |
|---|---|
| Frequency Response [-10 dB] | 47 - 20,000 Hz |
| Frequency Response [+/- 3 dB] | 60 - 19,000 Hz |
| Max SPL | 131 dB |
| Low Frequency Driver (LF) | 15" Woofer (Bass Reflex Chassis) |
| Mid Frequency Driver (MF) | 6.5" Horn-loaded Midrange Driver |
| High Frequency Driver (HF) | 1" Compression Driver (CD Horn, 90° x 40° Directivity) |
| Amplifier Technology | Digipro® Class-D with SMPS and PFC |
| RMS Power / Peak Power | 1000 W / 2000 W |
| Controller & Processing | DSP 24-bit/48kHz, Dual Active Limiters (Peak, RMS, Thermal) |
| System Presets | Flat, Processed |
| Cabinet Material | Multiplex Wood Housing |
| Dimensions (W x H x D) | 440 mm x 880 mm x 500 mm (17.6 in x 34.6 in x 20 in) |
| Weight | 31 kg (68.34 lbs) |
