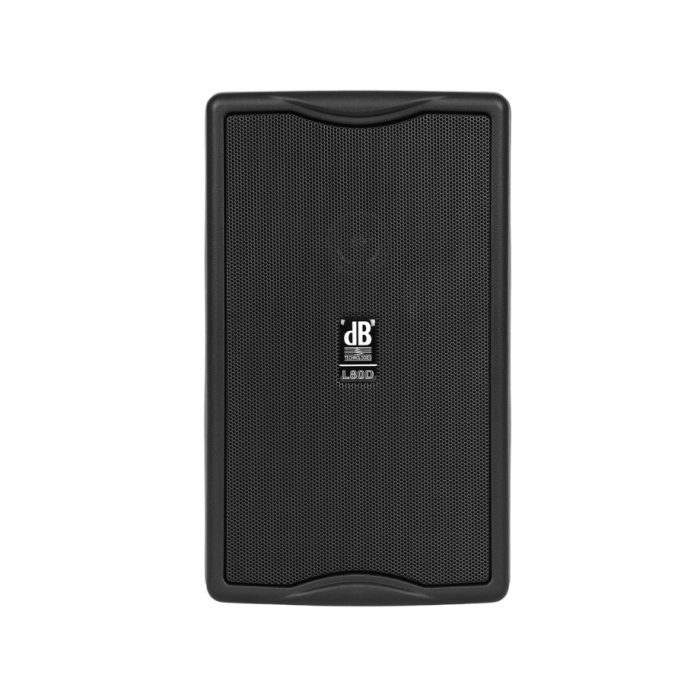

dB Technologies MINIBOX L 80D Compact 2-Way Active Speaker
Brand
D B TECHNOLOGIES
Provide clear, reliable background music and vocal reproduction with the dBTechnologies MINIBOX L 80D active loudspeaker. Designed for situations requiring high intelligibility in an ultra-compact footprint, this lightweight active monitor is an ideal solution for conference rooms, retail stores, multimedia presentations, and fill-speaker applications across the UAE.
Designed to pack professional-grade sound, digital signal processing, and high efficiency into an ultra-compact enclosure, the dBTechnologies MINIBOX L 80D is a versatile active 2-way coaxial speaker ideal for fixed installations, multimedia monitoring, and small-scale live sound applications.
Key Technologies & Features
- Digipro® Class-D Amplification: Powered by an efficient 80W digital amplifier that delivers impressive dynamic performance and reliable operation with a minimal physical footprint.
- Coaxial Transducer Design: Features a specialized coaxial configuration combining dual 4" woofers and a dome tweeter, ensuring pristine sound clarity, precise directivity, and uniform throw patterns without phase distortion.
- Onboard 56-bit DSP Controller: Equipped with a 24-bit/48 kHz AD/DA digital signal processor offering 8 selectable equalization presets, allowing the speaker to instantly optimize its performance for various applications (live, playback, monitoring).
- Versatile Connectivity: Includes dedicated balanced XLR/jack line inputs, an independent microphone input, and an RCA auxiliary channel with separate volume controls for maximum flexibility.
- Multifunctional Polypropylene Housing: Housed in a lightweight, rugged plastic cabinet designed with dual monitor angles (45°) and integrated M5 rigging points for easy wall mounting or stand placement.
Technical Specifications Overview
| Speaker Type | 2-Way Active Coaxial Speaker (Discontinued Series) |
|---|---|
| Frequency Response [-10 dB] | 90 Hz – 20,000 Hz |
| Max SPL | 112 dB |
| Low & High Frequency Drivers | Dual 4" Woofers + Coaxial Dome Tweeter (1" Voice Coil) |
| Horn Directivity | 85° x 75° |
| Amplifier Technology | Digipro® Class-D (80W PRG Power) |
| DSP Controller | 56-bit DSP with 24-bit/48 kHz AD/DA and 8 Presets |
| Housing Construction | Reinforced Polypropylene PP with Monitor Angles (45°) |
| Dimensions (W x H x D) | 155 mm x 265 mm x 180 mm (6.1 in x 10.43 in x 7.09 in) |
| Weight | 3.75 kg (8.27 lbs) |
