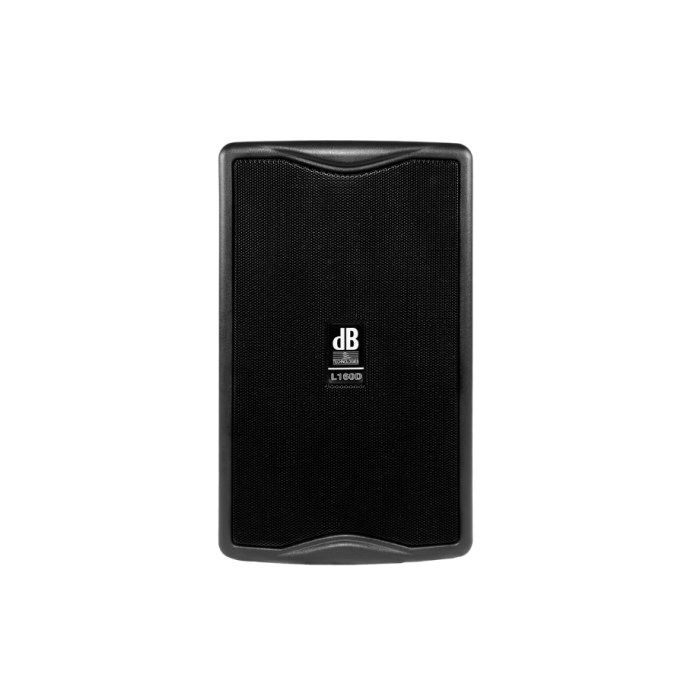

dBTechnologies Minibox L 160D 2-Way Active Speaker
Brand
D B TECHNOLOGIES
The dBTechnologies Minibox L 160D is a compact 160W RMS 2-way active speaker equipped with dual 5-inch woofers, 56-bit DSP processing, and flexible input connectivity for live speech, background music, and multimedia applications.
Discover high-output compact sound reinforcement with the dBTechnologies Minibox L 160D, a remarkably lightweight and versatile 2-way active speaker engineered for multimedia setups, vocal monitoring, small presentations, and discreet fixed installations.
Key Features & Engineering
- Digipro® Class-D Amplification: Powered by an efficient digital amplifier delivering 160W Program Power with high thermal stability and clear audio delivery.
- Coaxial Transducer Design: Features dual phase-corrected 5-inch low-frequency woofers combined with a 1-inch coaxial dome tweeter for transparent, cohesive sound projection.
- Onboard 24-bit/48kHz DSP: Includes a built-in digital signal processor with **8 selectable system presets** (such as Live, Playback, Stage Monitor, Voice, and Auto Loudness) to optimize performance for various scenarios.
- Flexible Input Options: Equipped with an XLR line/mic input, a 6.3mm phone jack, and an RCA auxiliary input with independent volume control for versatile multi-source connectivity.
Technical Specifications
| Speaker Type | 2-Way Active Speaker |
|---|---|
| Frequency Response [-10 dB] | 70 - 20,000 Hz |
| Max SPL | 116 dB |
| High Frequency Driver (HF) | 1" Coaxial Dome Tweeter |
| Low Frequency Driver (LF) | 2x 5" Woofers |
| Directivity | 85° x 75° |
| Amplifier Technology | Digipro® Class-D |
| Program Power (PRG) | 160 W |
| DSP Controller | 24-bit / 48 kHz with 8 System Presets |
| Limiters | Dual Active Peak, RMS, Thermal |
| Housing Material | Polypropylene (PP) with 60° angle capability for monitor use |
| Rigging Points | M5 threaded points on sides and bottom for brackets |
| Dimensions (W x H x D) | 200 mm x 335 mm x 220 mm (7.87 in x 13.18 in x 8.66 in) |
| Weight | 5.2 kg (11.46 lbs) |
