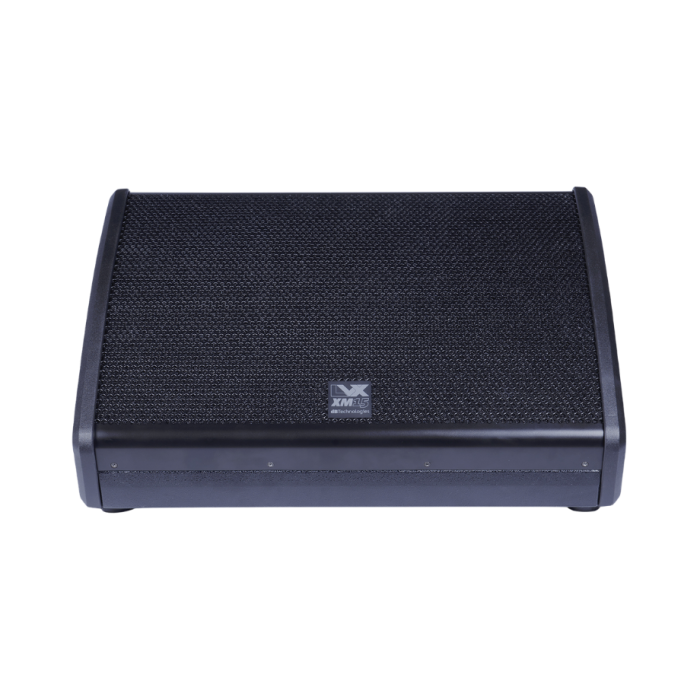

dBTechnologies LVX XM15 15" 2-Way Active Coaxial Stage Monitor
Brand
D B TECHNOLOGIES
The dBTechnologies LVX XM15 is an active 2-way coaxial stage monitor designed to deliver vocal clarity, uniform throw, and high sound pressure levels for touring performers, instrumentalists, and stage applications. Powered by a 600W RMS Digipro G3 Class-D amplifier module and a 56-bit DSP with FIR Linear Phase filters, it features an optimized coaxial horn design that acts as a phase plug for the woofer while shaping high-frequency directivity.
The dBTechnologies LVX XM15 is a high-performance 2-way active coaxial stage monitor engineered to provide exceptional acoustic accuracy, high resistance to feedback, and uniform throw patterns for vocalists, instrumentalists, and demanding live sound environments. Combining a custom coaxial design with advanced DSP filtering, it delivers crystal-clear sound reinforcement in a compact, road-ready profile.
Enhanced Coaxial Design & Advanced DSP
The LVX XM series optimizes the coaxial wedge concept by utilizing a specially designed horn that not only shapes high-frequency directivity (90° x 70°) but also functions as a physical phase plug for the 15” woofer. This boosts and highlights the critical vocal range while reinforcing the overall cabinet structure. Driven by an advanced 56-bit DSP featuring linear phase FIR filters, the monitor achieves transparent audio performance and includes 8 selectable rotary presets to adapt instantly to various stage requirements or playback applications.
Digipro® G3 Class-D Amplification
Powered by an efficient 600 W RMS (1200 W peak) Digipro G3 Class-D amplifier with an auto-ranging SMPS power supply, the unit delivers a maximum SPL of up to 128 dB. Onboard dual active limiters (Peak, RMS, and Thermal) ensure total protection of internal components during high-output performance sessions.
Rugged Touring Cabinet & Versatile Deployment
Housed in sturdy plywood with a durable black PVC finish and a reinforced metal grille, the cabinet includes two integrated side handles for easy transport. It also features a 36 mm pole mount cup on the side, allowing it to be mounted vertically for drum monitoring or mobile audio playback setups.
Technical Specifications
| Speaker Type: | 2-Way Active Coaxial Stage Monitor |
| Frequency Response [-6 dB]: | 58 – 17,800 Hz |
| Max SPL: | 128 dB |
| High-Frequency Transducer (HF): | 1” Exit, 1.4” Voice Coil |
| Low-Frequency Transducer (LF): | 15”, 2.5” Voice Coil (Coaxial) |
| Directivity (H x V): | 90° x 70° |
| Amplifier Technology: | Digipro® G3 (Class-D) |
| RMS Power: | 600 W |
| Peak Power: | 1200 W |
| Processor & DSP: | DSP 56-bit / 24-bit 48 kHz (FIR Linear Phase Filters) |
| System Presets: | 8 Rotary Presets |
| Signal Inputs / Outputs: | 1x Combo IN (XLR/Jack), 1x XLR Link OUT |
| Housing Material: | Plywood with Black PVC Cover |
| Pole Mount: | 36 mm Cup |
| Dimensions (W x H x D): | 640 mm x 460 mm x 370 mm (25.20” x 18.11” x 14.57”) |
| Weight: | 22.3 kg (49.16 lbs) |
