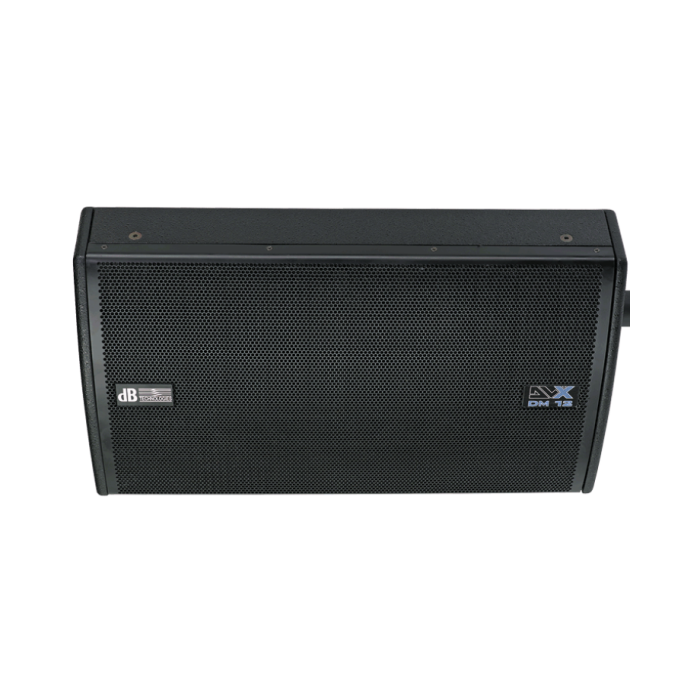

dBTechnologies DVX DM12 12" Active Stage Monitor
Brand
D B TECHNOLOGIES
Ensure uncompromised on-stage sound clarity with the dBTechnologies DVX DM12 Active Stage Monitor. Purpose-built for demanding touring stages and live music venues, this high-performance low-profile wedge monitor houses a premium 12-inch neodymium woofer (3" voice coil) paired with a 1.4-inch neodymium compression driver (2.5" titanium voice coil) mounted on a rotatable 40° x 90° aluminum CD horn. Delivering 750W RMS (1500W Peak) Class-D Digipro power, the DVX DM12 produces precise, feedback-resistant acoustic output from 68 Hz to 19,000 Hz with a maximum SPL of 131 dB.
Designed specifically for demanding professional stages, the dBTechnologies DVX DM12 is an ultra-low-profile 2-way active stage monitor engineered to deliver pristine audio clarity, exceptional feedback rejection, and high-impact sound pressure levels for performers and touring artists.
Key Features & Engineering
- Digipro® Class-D Amplification: Driven by a powerful 750W RMS (1500W Peak) digital amplifier paired with a switched-mode power supply featuring Power Factor Correction (PFC) for stable performance even under fluctuating mains voltage.
- High-Performance Neodymium Transducers: Features a custom 12" neodymium woofer with a 3" voice coil for punchy low-end response, coupled with a 1.4" neodymium compression driver featuring a 2.5" titanium voice coil.
- Rotatable Aluminum CD Horn: Equipped with a 40° x 90° rotatable constant-directivity aluminum horn, allowing precise coverage adjustments whether used individually or in mirrored monitor pairs.
- Onboard DSP & System Presets: Incorporates advanced 24-bit/48 kHz DSP with active crossovers, phase/time alignment, multi-band limiters, and dedicated switchable presets (Flat / Monitor) to instantly optimize stage response.
Technical Specifications
| Speaker Type | 2-Way Active Stage Monitor |
|---|---|
| Frequency Response [+/- 3 dB] | 68 - 19,000 Hz |
| Frequency Response [-10 dB] | 55 - 20,000 Hz |
| Max SPL | 131 dB |
| Low Frequency Driver (LF) | 12" Neodymium Woofer (3" Voice Coil) |
| High Frequency Driver (HF) | 1.4" Neodymium Compression Driver (2.5" Titanium Voice Coil) |
| Amplifier Technology | Digipro® Class-D with SMPS & PFC |
| RMS Power | 750 W RMS (1500 W Peak) |
| Controller | DSP 24-bit/48 kHz with RMS, Peak, Thermal, and Multi-band Limiters |
| Crossover Frequency | 1320 Hz (24 dB/Octave slope) |
| Enclosure Material | Multiplex plywood with durable black lacquer finish (Low-profile wedge design) |
| Rigging & Mounting | 6x M10 points, 4x Quick-Release Pins, and integrated pole mount socket |
| Dimensions (W x H x D) | 660 mm x 305 mm x 378 mm (25.9 in x 12.0 in x 14.8 in) |
| Weight | 17.5 kg (38.6 lbs) |
