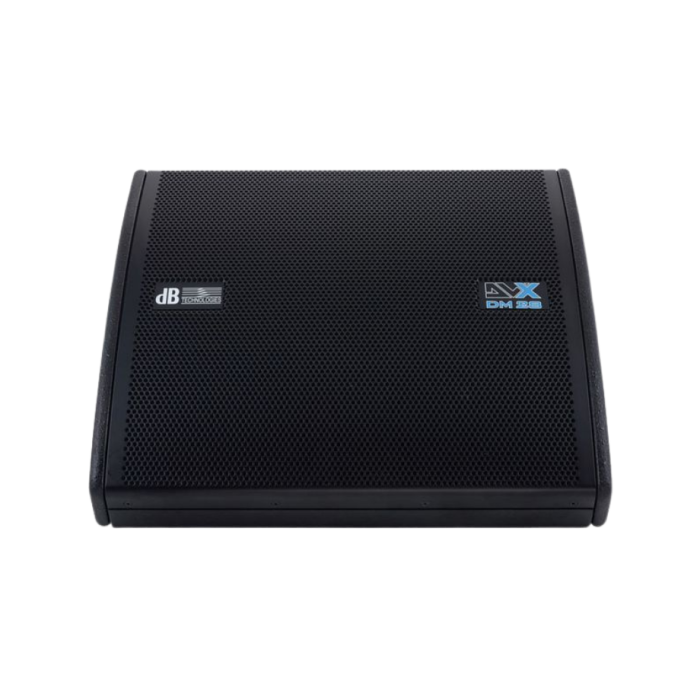

dBTechnologies DVX DM28 2-Way Active Stage Monitor
Brand
D B TECHNOLOGIES
Designed specifically for high-speech intelligibility and vocal projection on live stages, the dBTechnologies DVX DM28 delivers clean audio fidelity in an ultra-low-profile enclosure. Ideal for acoustic sets, television studios, theaters, and live musical performances where stage sightlines must remain unobstructed, this active 2-way monitor combines compact dimensions with high SPL capability.
Engineered for performers who demand superior transient response and punchy low-mid performance, the dBTechnologies DVX DM28 is a compact 2-way active stage monitor equipped with dual 8" neodymium woofers and an advanced asymmetrical CD horn.
Key Technologies & Features
- Dual 8" Neodymium Transducers: Outperforms standard single-woofer setups by delivering rapid transient response, immense accuracy, and a powerful low-mid punch paired with a 1" neodymium compression driver (1.75" titanium voice coil).
- Asymmetrical CD Horn Design: Features a specialized 90° x 60°/40° asymmetrical horn pattern that bundles high frequencies to throw sound further while widening the dispersion pattern closer to the stage for uniform coverage.
- Digipro® Class-D Amplification: Driven by a highly efficient digital amplifier producing 750W RMS (1500W Peak) with an integrated Power Factor Corrector (PFC) switched-mode power supply for stable performance globally.
- Onboard 24-bit/48 kHz DSP Controller: Incorporates active equalization, phase/time delay alignment, limiters, and switchable system presets (Flat/Monitor) optimized to resist feedback at high SPLs.
- Compact Low-Profile Enclosure: Built from rugged multiplex plywood finished in a durable black lacquer, offering two setup angles (30° and 60°) for optimized stage visibility and performance.
Technical Specifications Overview
| Speaker Type | 2-Way Active Stage Monitor |
|---|---|
| Frequency Response [-10 dB] | 60 Hz – 20,000 Hz |
| Frequency Response [+/- 3 dB] | 70 Hz – 19,000 Hz |
| Max SPL | 130 dB |
| Low Frequency Drivers (LF) | 2x 8" Neodymium Woofers (2.5" voice coil) |
| High Frequency Driver (HF) | 1" Neodymium Compression Driver (1.75" titanium voice coil) |
| Directivity (H x V) | 90° x 60°/40° (Asymmetrical CD Horn) |
| Amplifier Technology | Digipro® Class-D (750W RMS / 1500W Peak) |
| DSP Controller | 24-bit / 48 kHz with System Presets (Flat, Monitor) |
| Enclosure Housing | Multiplex Plywood (Low Profile Multifunctional Design) |
| Monitor Angles | 30° and 60° |
| Dimensions (W x H x D) | 480 mm x 265 mm x 418 mm (19.2 in x 10.6 in x 16.72 in) |
| Weight | 14 kg (30.86 lbs) |
