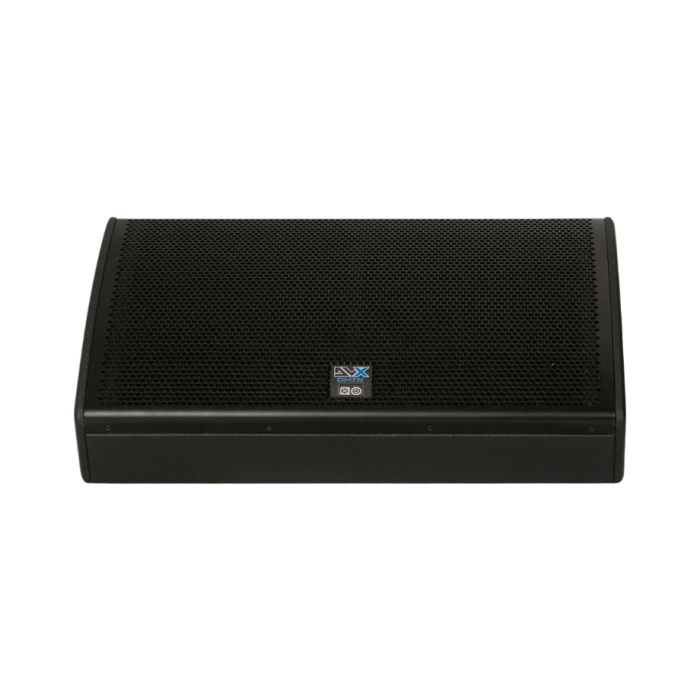

dBTechnologies DVX DM15 TH 2-Way Active Stage Monitor
Brand
D B TECHNOLOGIES
Designed for touring artists, main stages, and high-SPL live environments, the dBTechnologies DVX DM15 TH active floor monitor delivers low-end response, vocal clarity, and feedback resistance. Engineered into a low-profile 15mm birch multiplex enclosure finished in heavy-duty polyurea coating, it provides high acoustic performance in a road-ready format.
Designed for heavy-duty touring applications and large stage environments, the dBTechnologies DVX DM15 TH is a high-output, 2-way active stage monitor featuring a larger 15" low-frequency transducer, advanced FIR phase filtering, and a modular rotatable front panel system.
Key Technologies & Features
- Tour-Grade Digipro® G2 Amplification: Powered by a high-efficiency Class-D digital amplifier delivering a massive 1500W RMS (3000W Peak) with a built-in Power Factor Corrector (PFC) for global voltage stability.
- Advanced FIR Phase Processing: Incorporates 56-bit DSP with linear phase filtering to achieve exceptional vocal range intelligibility, coherent acoustic response, and high feedback rejection even at a booming 136 dB Max SPL.
- Modular Rotatable Front Panel: Allows technicians to instantly reconfigure the internal layout by rotating the front panel—changing the horn position to the left or right to suit specific stage placement requirements or vertical drum-fill setups.
- Clean Cable Management: Features strategically separated side-panel I/O (PowerCon and XLR inputs on one side, link loops on the other) to keep cables out of sight and enable effortless multi-monitor chaining.
- Rugged Touring Build: Constructed from robust multiplex plywood finished with a tough polyurea coating, featuring dual setup angles (35° and 55°) and integrated side handles.
Technical Specifications Overview
| Speaker Type | 2-Way Active Stage Monitor (Touring High-End Series) |
|---|---|
| Frequency Response [-6 dB] | 55 Hz – 16,000 Hz |
| Frequency Response [-10 dB] | 47 Hz – 18,000 Hz |
| Max SPL | 136 dB |
| Low Frequency Driver (LF) | 15" Neodymium Woofer (4" voice coil) |
| High Frequency Driver (HF) | 1.4" Neodymium Compression Driver (2.5" voice coil) |
| Directivity (H x V) | 90° x 40° (Rotatable Aluminum CD Horn / Rotatable Front Panel) |
| Amplifier Technology | Digipro® G2 Class-D (1500W RMS / 3000W Peak) |
| DSP Controller | 56-bit DSP with 24-bit/48 kHz AD/DA Converter and FIR Filters |
| System Presets | Flat EQ, TH EQ |
| Enclosure Housing | Multiplex Plywood with Polyurea Painting |
| Monitor Angles | 35° and 55° |
| Dimensions (W x H x D) | 735 mm x 355 mm x 447 mm (28.9 in x 14 in x 17.6 in) |
| Weight | 28.5 kg (62.8 lbs) |
