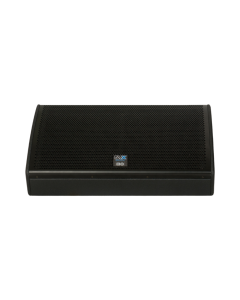

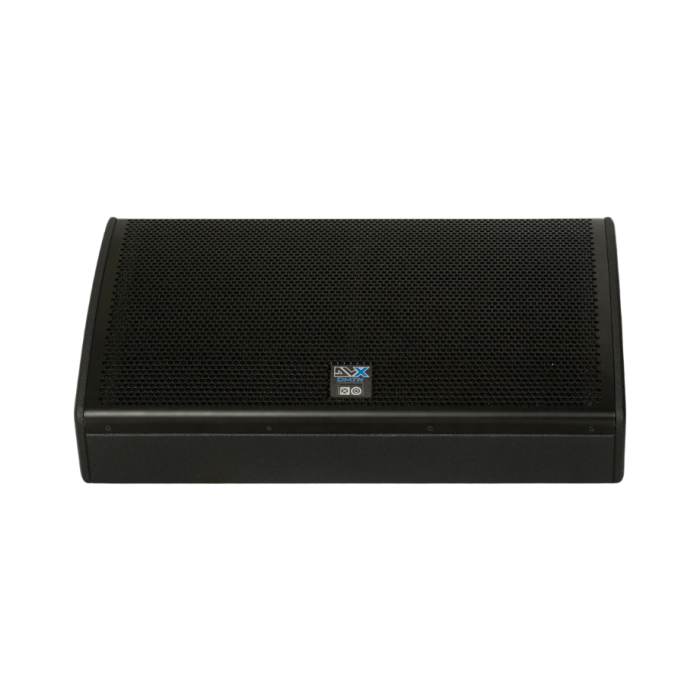

dBTechnologies DVX DM12 TH Active Stage Monitor
Brand
D B TECHNOLOGIES
Designed to meet the rigorous demands of professional touring stages and large theater productions, the dBTechnologies DVX DM12 TH delivers high SPL, vocal clarity, and feedback immunity. Engineered as a dedicated high-performance floor monitor, it incorporates a heavy-duty 15mm birch multiplex enclosure coated in protective polyurea to withstand demanding road conditions.
Engineered for the absolute pinnacle of live touring requirements, the dBTechnologies DVX DM12 TH is an advanced, high-output 2-way active stage monitor featuring state-of-the-art FIR-processed phase alignment, a rotatable front panel system, and massive power headroom.
Key Technologies & Features
- Tour-Grade Digipro® G2 Amplification: Powered by a high-efficiency Class-D digital amplifier delivering a colossal 1500W RMS (3000W Peak) with a built-in Power Factor Corrector (PFC) for global power stability.
- Advanced FIR Phase Processing: Incorporates advanced 56-bit DSP with linear phase filtering to achieve a highly coherent phase emission, exceptional vocal range intelligibility, and superior feedback rejection at extreme volume levels (up to 136 dB Max SPL).
- Modular Rotatable Front Panel: Allows stage technicians to quickly change the orientation of the internal acoustic components by rotating the front panel—effectively configuring the horn layout to the left or right depending on stage placement or vertical multi-way applications.
- Intelligent Side-Panel I/O Routing: Thoughtfully arranged with power and signal inputs (PowerCon and XLR) on one side and loop-through links on the other, ensuring a clean, hidden stage cable layout and effortless multi-monitor chaining.
- Rugged Tour-Proof Enclosure: Housed in durable multiplex plywood finished with a tough polyurea coating, featuring dual monitor angles (35° and 55°) and integrated side handles.
Technical Specifications Overview
| Speaker Type | 2-Way Active Stage Monitor (Touring High-End Series) |
|---|---|
| Frequency Response [-6 dB] | 63 Hz – 16,000 Hz |
| Frequency Response [-10 dB] | 59 Hz – 18,000 Hz |
| Max SPL | 136 dB |
| Low Frequency Driver (LF) | 12" Neodymium Woofer (4" voice coil) |
| High Frequency Driver (HF) | 1.4" Neodymium Compression Driver (2.5" voice coil) |
| Directivity (H x V) | 90° x 40° (Rotatable Aluminum CD Horn / Rotatable Front Panel) |
| Amplifier Technology | Digipro® G2 Class-D (1500W RMS / 3000W Peak) |
| DSP Controller | 56-bit DSP with 24-bit/48 kHz AD/DA Converter and FIR Filters |
| System Presets | Flat EQ, TH EQ |
| Enclosure Housing | Multiplex Plywood with Polyurea Painting |
| Monitor Angles | 35° and 55° |
| Dimensions (W x H x D) | 670 mm x 325 mm x 405 mm (26.4 in x 12.8 in x 15.9 in) |
| Weight | 24.5 kg (54 lbs) |
