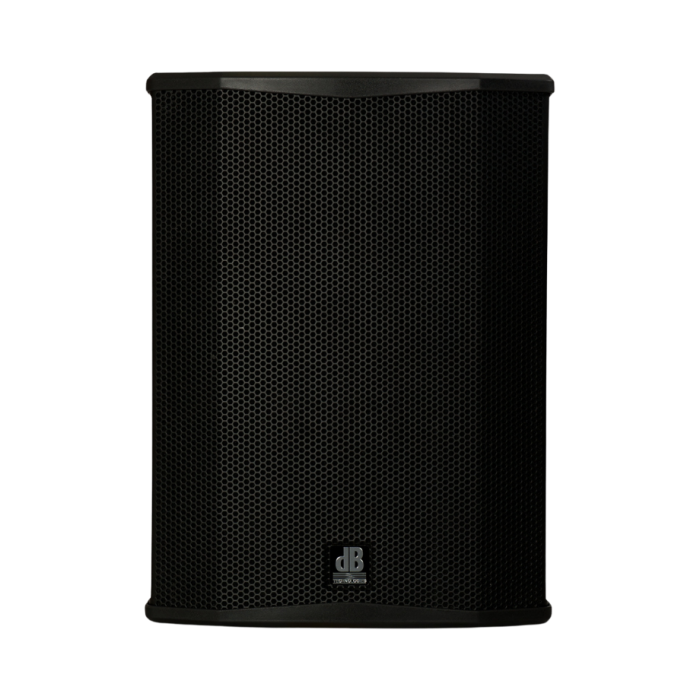

dBTechnologies SUB 18H 18" Active Hybrid Horn-Loaded Subwoofer
Brand
D B TECHNOLOGIES
The dBTechnologies SUB 18H is a high-performance active subwoofer featuring a unique Hybrid Horn-Loading configuration designed to combine low-end extension with acoustic efficiency. Equipped with a high-excursion 18-inch woofer, a 1500W RMS Digipro G3 Class-D amplifier, and a 56-bit DSP engine, it delivers high sound pressure levels and precise low-frequency reproduction for live sound applications and venue installations.
The dBTechnologies SUB 18H is a high-performance, semi-horn-loaded active subwoofer designed to deliver deep, enveloping low-frequency extension for small- to mid-sized live events, portable PA setups, clubs, ballrooms, and theatrical installations. Utilizing an innovative Hybrid Horn-Loading configuration, it optimizes efficiency to convey massive low-end performance even at close listening distances.
Hybrid Horn-Loading & Acoustic Excellence
Equipped with a powerful 18” woofer featuring a robust 4” voice coil, the SUB 18H is engineered to tune into the lowest frequencies while maintaining exceptional system efficiency. Unlike conventional horn-loaded subwoofers, this unique design ensures superior acoustic projection and tight transient response across demanding audio environments.
Digipro® G3 Amplification & Advanced DSP Processing
Driven by a lightweight and highly efficient 1500 W RMS (2000 W peak) Digipro G3 Class-D amplifier, the system delivers a max SPL of up to 134 dB. Onboard processing features a 56-bit DSP with 24-bit / 48 kHz AD/DA conversion, offering dual active limiters (RMS, Peak, Thermal), selectable crossover frequencies (90 Hz or 120 Hz at 24 dB/octave), phase inversion switching, and a built-in delay switch of up to 4.5 ms (adjustable in 0.5 ms steps).
Tour-Ready Build & Smart Telemetry
Housed in sturdy birch plywood with a black PVC cover and durable polypropylene edges designed to resist scratches and impacts during transit, the cabinet features exclusive aluminum heavy-duty handles and a standard M20 pole mount plate on top. Additionally, a mini USB Type-B port allows for firmware updates and telemetry logging to track amplifier status and usage history.
Technical Specifications
| Speaker Type: | Semi Horn-Loaded Active Subwoofer |
| Amplifier Technology: | Digipro® G3 (Class-D) |
| RMS Power: | 1500 W |
| Peak Power: | 2000 W |
| Max SPL: | 134 dB |
| Frequency Response [-6 dB]: | 35 – 120 Hz |
| Frequency Response [-10 dB]: | 28 – 150 Hz |
| Low-Frequency Transducer: | 18” (4” Voice Coil) |
| Controller & DSP: | DSP 56-bit / 24-bit 48 kHz AD/DA Converter |
| Crossover Frequencies: | 90 Hz or 120 Hz (24 dB/Octave) |
| Audio Inputs / Outputs: | 2x XLR Input, 2x XLR X-Over / Link Out |
| Enclosure Material: | Birch Plywood with Black PVC Cover & Polypropylene Edges |
| Pole Mount Plate: | Standard M20 on Top |
| Dimensions (W x H x D): | 524 mm x 711 mm x 695 mm (20.6” x 28.0” x 27.4”) |
| Weight: | 41.4 kg (91.3 lbs) |
| Brands | D B TECHNOLOGIES |
|---|
