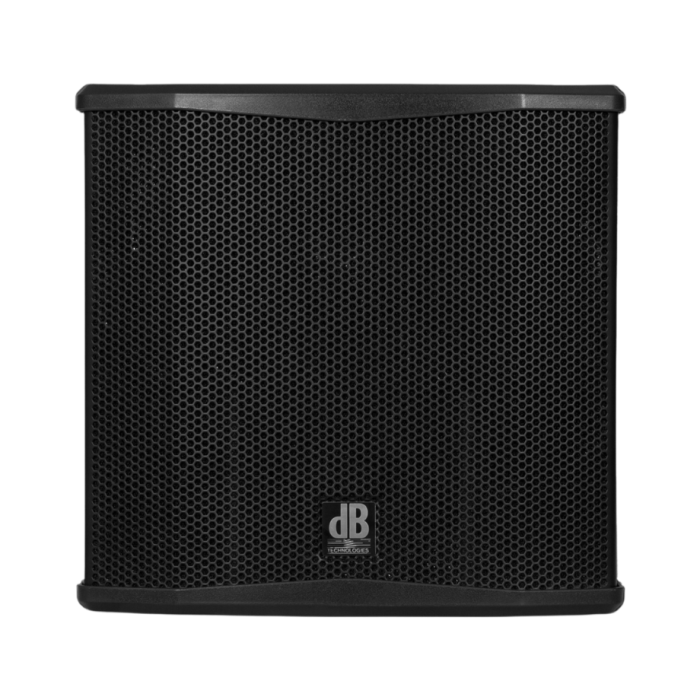

dBTechnologies SUB 15H 15" Active Hybrid Subwoofer
Brand
D B TECHNOLOGIES
Enhance your live audio setup with the powerful low-end performance of the dBTechnologies SUB 15H Active Subwoofer. Featuring an innovative hybrid horn-loaded design, this 15-inch powered subwoofer blends the deep bass extension of a bass-reflex cabinet with the punch and long-distance projection of a horn system. Driven by a 1000W RMS (1400W Peak) Digipro G3 Class-D power amplifier, it produces tight, chest-thumping bass down to 35 Hz with a maximum output of 133 dB SPL.
Deliver punchy, deep-reaching low frequencies to your live performances with the dBTechnologies SUB 15H, an advanced semi horn-loaded active subwoofer engineered for small-to-mid-sized events, mobile PA rigs, clubs, and demanding audio reinforcement.
Key Features & Engineering
- Digipro G3™ Class-D Amplification: Powered by an ultra-efficient digital amplifier delivering 1000W RMS (1400W Peak) with exceptional thermal stability and low power consumption.
- Hybrid Horn-Loading Technology: Combines bass-reflex and horn-loaded principles to maximize system efficiency at close listening distances while producing a deep, enveloping low-end punch down to 35 Hz.
- Advanced 56-bit DSP & Control: Features a high-performance digital signal processor with 24-bit/48kHz AD/DA conversion, dual active limiters, selectable crossover frequencies (90 Hz or 120 Hz), and a phase inversion switch.
- Built-In Delay & Cardioid Capability: Includes an onboard delay switch adjustable up to 4.5 ms (in 0.5 ms steps), enabling advanced subwoofer configurations (Cardioid, End-Fire, or Straight Line) without requiring an external processor.
- Tour-Ready Enclosure: Housed in rugged multiplex plywood protected by a scratch-resistant black PVC cover and heavy-duty aluminum handles.
Technical Specifications
| Speaker Type | Semi Horn-Loaded Active Subwoofer |
|---|---|
| Frequency Response [-10 dB] | 35 - 150 Hz |
| Frequency Response [-6 dB] | 40 - 120 Hz |
| Max SPL | 133 dB |
| Low Frequency Driver (LF) | 15" Woofer (3" Voice Coil) |
| Amplifier Technology | Digipro G3™ Class-D |
| RMS Power / Peak Power | 1000 W / 1400 W |
| Power Supply | 700W SMPS with Auto-Range (110V~ and 220V~) |
| DSP Controller | 56-bit with 24-bit/48kHz AD/DA Converters |
| Crossover Frequencies | 90 Hz or 120 Hz (24 dB/Octave slope) |
| Cabinet Material | Plywood with Black PVC Cover & Polypropylene Edges |
| Pole Mount | M20 Threaded Mount on Top |
| Dimensions (W x H x D) | 524 mm x 511 mm x 695 mm (20.6 in x 20.1 in x 27.4 in) |
| Weight | 31.5 kg (69.4 lbs) |
