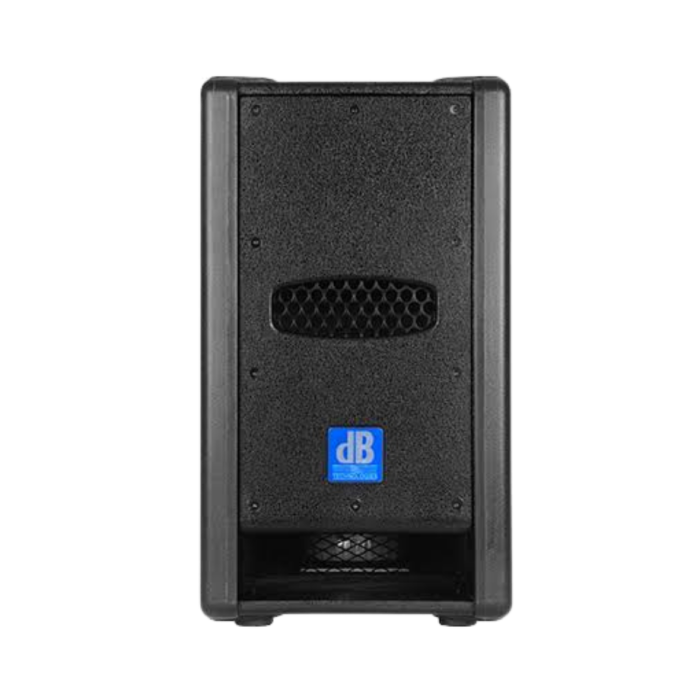

dBTechnologies SUB 28D 2x8" Active Bandpass Subwoofer
Brand
D B TECHNOLOGIES
The dBTechnologies SUB 28D is a light and compact active bandpass subwoofer designed to provide low-end frequency reinforcement for compact satellite speakers. Equipped with two 8-inch woofers powered by an 800W Peak Class-D Digipack amplifier and an onboard 24-bit/48 kHz DSP, it delivers precise subsonic output in a highly portable enclosure.
Enhance your portable sound setup with the dBTechnologies SUB 28 D Active-Subwoofer, designed specifically to complement compact satellite loudspeakers such as those in the dBTechnologies L and K series. Housed in a lightweight, slim, and durable enclosure, this active bandpass subwoofer packs dual 8-inch woofers and a robust Class-D digital amplifier to deliver punchy, defined low-end frequencies for mobile DJs, small venues, and acoustic setups.
Acoustic Design & Powerful Performance
The SUB 28 D utilizes a high-efficiency bandpass design housing two 8-inch woofers, driven by a reliable Class-D digital power amplifier that produces 400 W RMS (800 W peak) of dynamic output. Capable of reaching a maximum SPL of 125 dB, it ensures solid, impactful bass response down to 45 Hz. The integrated digital stereo crossover (DSP) makes it straightforward to configure mono or stereo satellite systems seamlessly.
Key Technical Features & Signal Processing
- Dual 8” Woofers: Custom-engineered drivers built into a slim cabinet footprint to maximize low-frequency punch and efficiency.
- Digital Stereo Crossover (DSP): Features a 24-bit / 48 kHz digital processor with selectable crossover frequencies (LF-MF setups) and a 24 dB/octave slope for clean signal separation.
- Dual Active Limiter: Protects internal components against distortion and thermal overload during demanding performance sessions.
- Flexible Phase Control: Easily switch phase polarity between 0° and 180° to achieve optimal phase alignment with your main satellite speakers.
Compact, Road-Ready Construction
Constructed using advanced H.E.T (Hybrid Enclosure Technology) multiplex wood with a durable textured acrylic lacquer and rugged plastic side panels, the SUB 28 D is engineered to withstand the wear and tear of transport. It features a convenient 36mm pole mount flange on top for easy satellite speaker mounting, one integrated side handle for comfortable lifting, and standard VDE power connections.
Technical Specifications
| Speaker Type: | Active Bandpass Subwoofer |
| Amplifier Class: | Class-D (Digipack) |
| Power Output (PRG): | 400 W (RMS) / 800 W (Peak) |
| Max SPL: | 125 dB |
| Frequency Response [-10 dB]: | 45 – 150 Hz |
| Low-Frequency Drivers: | 2 x 8” |
| Processor Controller: | DSP 24-bit / 48 kHz |
| Phase Adjustment: | 0°, 180° |
| Signal Inputs / Outputs: | 2x XLR Input, 2x XLR Link Out / X-Over Out |
| Housing Material: | H.E.T Multiplex Wood with Textured Acrylic Lacquer |
| Pole Mount Flange: | 1x 36mm on Top |
| Dimensions (W x H x D): | 290 mm x 520 mm x 505 mm (11.4" x 20.5" x 19.9") |
| Weight: | 19.5 kg (42.99 lbs) |
Order Online from Gigstore UAE
Complete your compact pro-audio setup today. Order the dBTechnologies SUB 28 D Active-Subwoofer online from Gigstore to enjoy secure checkout, genuine equipment, and fast delivery across Dubai, Abu Dhabi, and the entire UAE.
