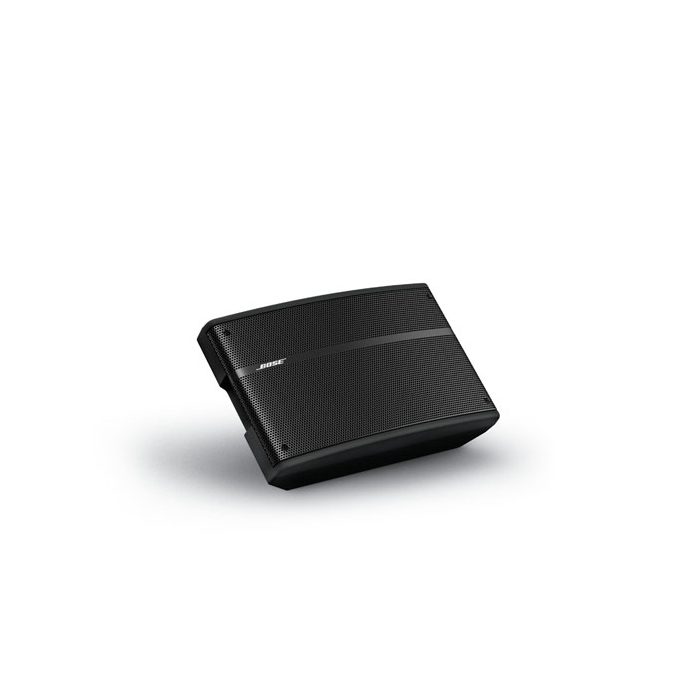

Bose Professional Panaray 620M Multi-Position Floor Array
Brand
BOSE
The Bose Professional Panaray 620M is a versatile, high-performance passive floor monitor designed for professional stage applications. Featuring a unique multi-position Articulated Array design, it provides tailored coverage for individual performers or groups, making it a flexible solution for theaters, houses of worship, and live performance venues in the UAE.
What is the Bose Professional Panaray 620M Floor Monitor?
The Bose Panaray 620M is a professional multi-position floor array featuring six 2.25-inch drivers and one 5.25-inch woofer. Its specialized cabinet design allows for three distinct coverage patterns: Individual (45°), Group (Deep: 40° H x 120° V), or Group (Shallow: 40° H x 120° V). This adaptability makes it the perfect stage monitor for vocalists, instrumentalists, and public speakers in professional UAE venues. Available at Gigstore.
Adaptive Stage Coverage: Bose Panaray 620M Multi-Position Monitor
The Bose Panaray 620M redefines stage monitoring by offering tailored coverage in a single loudspeaker. Available at Gigstore, this monitor is engineered for the dynamic needs of performers in Dubai and Abu Dhabi. Whether you are a solo vocalist needing focused audio or part of a large ensemble requiring wide-area monitoring, the 620M’s **Articulated Array** technology ensures consistent tonal balance across the entire stage.
The standout feature of the 620M is its tri-position cabinet. By simply flipping the monitor, you can choose between **Individual Position** (45° for single performers), **Group-Deep Position** (for deep stages), or **Group-Shallow Position** (for wide, shallow stages). This flexibility eliminates the need for multiple types of monitors in your rental or installation inventory, providing a sleek and professional look for high-profile UAE events.
Crystal-Clear Vocals and Durability
Equipped with six 2.25-inch mid/high-frequency drivers and a 5.25-inch low-frequency woofer, the Panaray 620M delivers exceptional vocal clarity and feedback resistance. The Articulated Array design provides a wide 120° horizontal coverage, allowing performers to move more freely on stage without losing audio detail. Housed in a durable, sleek enclosure with a recessed NL4 connector, it is built to withstand the physical demands of touring and frequent stage setups.
- Multi-Position Design: Three distinct floor positions for individual or group monitoring.
- Articulated Array Technology: Six drivers configured to provide wide, consistent 120° horizontal coverage.
- Passive Crossover: Internal network with frequency-specific limiting for driver protection.
- Low Profile: Sleek aesthetic that doesn't obstruct the audience's view of the performer.
- Integrated Rigging: Includes two M8 threaded inserts for optional pole mounting or suspension.
Technical Specifications
| Feature | Specification Details |
|---|---|
| Frequency Response (+/-3 dB) | 70 Hz - 16 kHz |
| Frequency Range (-10 dB) | 55 Hz - 18 kHz |
| Power Handling (Long Term) | 200 W (800 W Peak) |
| Nominal Impedance | 8 Ω |
| Maximum SPL @ 1m | 113 dB (119 dB Peak) |
| Nominal Coverage (Group Positions) | 40° V x 120° H |
| Dimensions (H x W x D) | 318 mm x 522 mm x 266 mm |
| Weight | 10 kg (22 lbs) |
Why Purchase Bose Professional from Gigstore?
As the UAE’s premier destination for high-end audio gear, Gigstore guarantees authentic Bose Professional equipment with local support. When you buy the Panaray 620M from us, you receive:
- 100% Genuine Bose Gear: Sourced through authorized regional channels for full warranty peace of mind.
- Reliable UAE Shipping: Secure, insured delivery to your door in Dubai, Abu Dhabi, and beyond.
- Expert Support: Our team can assist in configuring your **Bose PowerMatch** or **ControlSpace** settings for the 620M.
Frequently Asked Questions
Does the 620M require a dedicated controller?
For the best sound quality and driver protection, Bose recommends using **active equalization**. This can be achieved through a Bose professional system controller or by using the factory presets in Bose PowerMatch amplifiers.
Can I use this on a speaker stand?
Yes! The 620M features a recessed pole-mount socket (35mm) on one side, allowing it to be used as a standard PA speaker for small presentations or as a side-fill monitor.
What is the horizontal coverage?
In the Group positions, the Panaray 620M provides a very wide **120° horizontal coverage**, making it excellent for covering multiple performers standing side-by-side.
