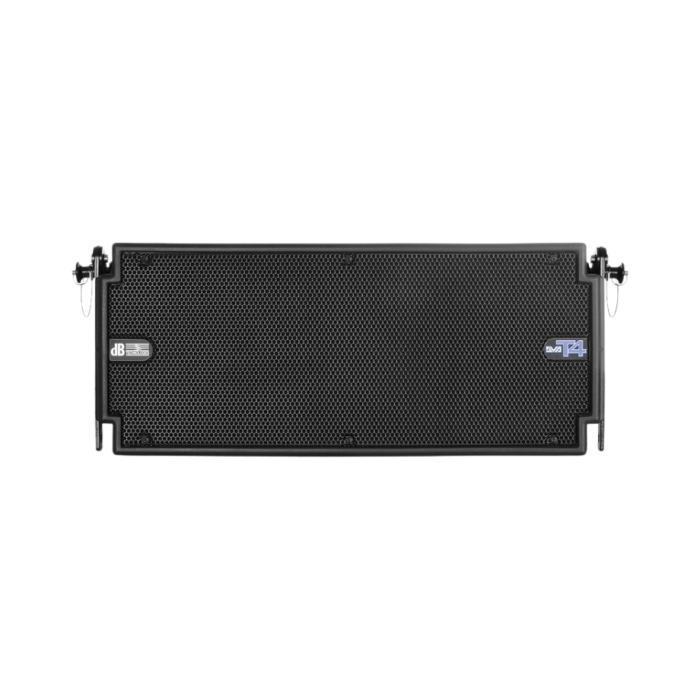

dBTechnologies DVA T4 3-Way Active Line Array Module
Brand
D B TECHNOLOGIES
Achieve long-throw audio coverage and exceptional intelligibility with the dBTechnologies DVA T4 3-Way Active Line Array Module. Engineered for professional touring, live music venues, and fixed installations, this compact active line array enclosure incorporates an 8-inch neodymium woofer (2.5" voice coil), a horn-loaded 6.5-inch neodymium midrange driver (1.5" voice coil), and dual 1-inch neodymium compression drivers (1.4" Mylar diaphragm). Together, they deliver precise 100° x 15° dispersion across an extended frequency response of 80 Hz to 19,000 Hz with a maximum output of 128 dB SPL.
Deliver exceptional speech intelligibility and linear audio coverage for live events and touring productions with the dBTechnologies DVA T4, a legendary 3-way active line array module engineered to provide professional-grade performance in an ultra-lightweight, compact enclosure.
Key Features & Engineering
- Digipro® Class-D Amplification: Powered by a reliable multi-channel digital amplifier delivering a total of 420W RMS (220W LF, 100W MF, 100W HF) paired with high-efficiency SMPS and PFC technology.
- Advanced 3-Way Transducer Design: Combines an 8" neodymium woofer (2.5" voice coil), a sealed 6.5" neodymium midrange speaker with a phase plug horn exit, and dual 1" neodymium high-frequency drivers with 1.4" mylar membranes.
- Onboard DSP & Multiband Limiting: Features built-in 24-bit/48 kHz DSP with dedicated response curves, 8 system presets for frequency correction, and a multiband compressor/limiter for maximum component protection.
- Rugged & Lightweight Build: Housed in a durable, reinforced polypropylene (PP) trapezoidal cabinet featuring integrated fast-lock hardware rigging for easy flying or ground stacking.
Technical Specifications
| Speaker Type | 3-Way Active Line Array Module |
|---|---|
| Frequency Response [+/- 3 dB] | 80 - 19,000 Hz |
| Max SPL | 128 dB per unit |
| Transducers (LF / MF / HF) | 8" Woofer (2.5" v.c.) | 6.5" Midrange (1.5" v.c.) | 2x 1" HF Drivers (1.4" v.c.) |
| Amplifier Technology | Digipro® Class-D with SMPS & PFC |
| RMS Power | 420 W RMS (220W LF + 100W MF + 100W HF) |
| Controller | DSP 24-bit/48 kHz with Dual Active / Multiband Limiters |
| Crossover Frequencies | LF-MF: 400 Hz | MF-HF: 1800 Hz (24 dB/Octave) |
| Enclosure Material | Reinforced Polypropylene (PP) with 15° trapezoidal design |
| Rigging & Mounting | Integrated quick-lock rigging hardware mechanics |
| Dimensions (W x H x D) | 580 mm x 240 mm x 327 mm (23.2 in x 9.6 in x 13.1 in) |
| Weight | 13.8 kg (30.4 lbs) |
