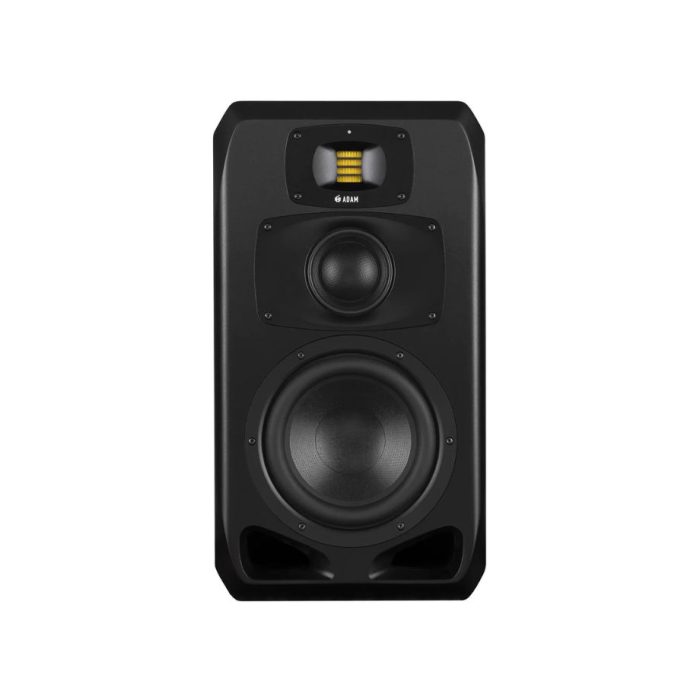

ADAM Audio S3V Flagship Midfield Monitor

ADAM Audio S3V: Precision Engineering for Critical Reference Monitoring

The ADAM Audio S3V is a vertically oriented 3-way studio monitor designed to be the centerpiece of professional midfield monitoring setups. As part of ADAM’s flagship S Series, the S3V represents the pinnacle of German audio engineering, offering a neutral, uncolored soundstage that reveals the finest details of any recording. For world-class studios in the UAE and across the GCC, the S3V provides the surgical accuracy required for high-stakes mixing, film scoring, and mastering applications.

Revolutionary Tri-Amplified Driver Complement

The S3V utilizes a sophisticated tri-amped design, delivering a total of 850W RMS to ensure effortless reproduction of complex audio material:

• 9-Inch ELE™ Bass Driver: Powered by a 500W Class D amplifier, the Extended Linear Excursion (ELE) woofer uses a Symmetrical Magnet Assembly (SMA) to deliver powerful, distortion-free bass down to 32Hz, even at extreme sound pressure levels.
• 4-Inch DCH Midrange: This unique 300W hybrid driver combines the clean dispersion of a dome with the high excursion of a cone. It handles the critical midrange frequencies with zero coloration, allowing for perfect vocal and instrument placement.
• Handmade S-ART Tweeter: Each S-ART tweeter is handcrafted in Berlin and features a 4-to-1 velocity transformation ratio. Mounted in a solid aluminum HPS waveguide, it provides high-frequency detail up to 50kHz with a wide, stable sweet spot.

Intelligent DSP and Digital Integration

Equipped with a high-performance custom DSP engine, the S3V allows for precise acoustic calibration to match the unique characteristics of your UAE control room:

• In-Room Tuning: Access 6-band parametric EQs and high/low shelf filters via the rear-panel OLED display to compensate for room modes or desk reflections.
• AES3 Digital Connectivity: Includes professional digital inputs and loop-through options for a pure, lossless signal path from your workstation.
• S-Control Remote: Use the integrated USB port to connect to a computer and adjust all internal DSP parameters via software for maximum convenience.

Technical Specifications

• Monitor Type: 3-Way Active Vertical Midfield Monitor.
• Tweeter: S-ART Ribbon with HPS Waveguide.
• Midrange: 4" DCH (Dome/Cone Hybrid) Carbon Composite.
• Woofer: 9" ELE™ HexaCone Woofer.
• Total Power: 850W RMS (500W LF, 300W MF, 50W HF).
• Frequency Response: 32 Hz – 50 kHz.
• Maximum SPL: ≥124 dB (per pair at 1m).
• Crossover Frequencies: 250 Hz / 3 kHz.
• Inputs: Analog XLR, Digital AES3 (In/Out).
• Dimensions (HxWxD): 536 mm x 293 mm x 380 mm.
• Weight: 25 kg (55 lbs) per unit.

Step up to world-class monitoring. Order the ADAM Audio S3V from Gigstore today and experience the ultimate in precision, power, and clarity.
