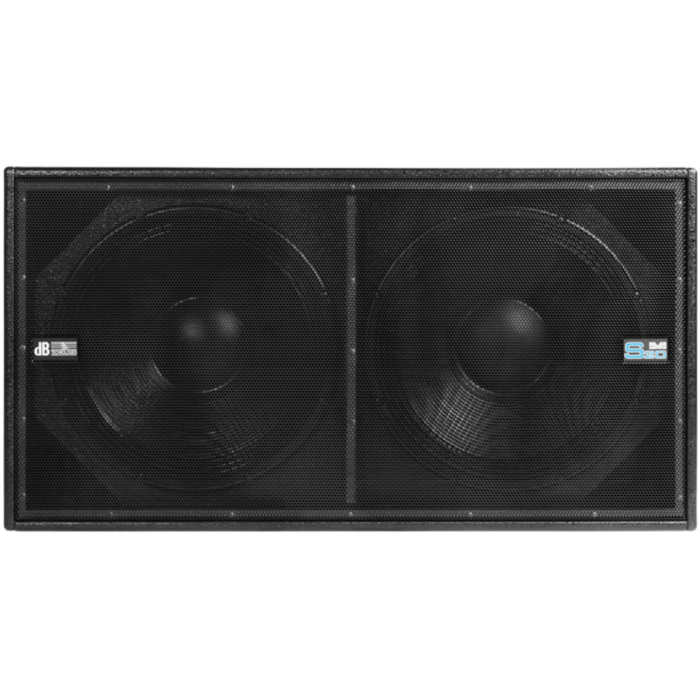

dBTechnologies DVA S20 DP Dual 18" Active Flyable Subwoofer
Brand
D B TECHNOLOGIES
The dBTechnologies DVA S20 DP is a high-output 2000W RMS dual 18-inch active bass-reflex subwoofer designed for groundstacked or flown DVA line array systems, reaching up to 139 dB Max SPL.
Deliver authoritative, ground-shaking low frequencies to large touring rigs and scaleable line array configurations with the dBTechnologies DVA S20DP, an ultra-high-output active dual 18-inch subwoofer engineered for massive acoustic pressure and precision low-end delivery.
Key Features & Engineering
- Digipro® Class-D Amplification: Powered by dual high-efficiency digital amplifier modules delivering an impressive 2000W RMS (4000W Peak) of continuous power with convection cooling (no fans required).
- Dual 18-Inch Bass-Reflex Design: Houses two high-performance 18" woofers with 4" voice coils inside a robust multiplex birch plywood cabinet, producing deep lows down to 25 Hz and a maximum SPL of 138 dB.
- Active Power Factor Correction (PFC): Equipped with a switched-mode power supply that ensures stable, consistent performance regardless of mains voltage fluctuations worldwide.
- Cardioid & Delay Capabilities: Supports omnidirectional setups or advanced directional cardioid configurations when paired with an optional SDD delay module to minimize stage low-frequency spill.
Technical Specifications
| Speaker Type | Active Dual 18" Bass-Reflex Subwoofer |
|---|---|
| Frequency Response [-10 dB] | 25 - 120 Hz |
| Frequency Response [+/- 3 dB] | 35 - 120 Hz |
| Max SPL | 138 dB |
| Low Frequency Driver (LF) | 2x 18" Woofers (4" Voice Coil) |
| Amplifier Technology | Digipro® Class-D with PFC |
| RMS Power / Peak Power | 2000 W / 4000 W |
| Controller | Analog with RMS, Peak, and Thermal Limiters |
| Crossover Frequencies | 90 Hz or 120 Hz (24 dB/Octave slope) |
| Enclosure Material | Multiplex Birch Plywood |
| Rigging & Transport | Integrated pick points for DRK-10/DRK-20 frames; 4 handles per side; side bushings for optional wheels |
| Dimensions (W x H x D) | 1100 mm x 580 mm x 720 mm (43.3 in x 23.2 in x 28.8 in) |
| Weight | 84 kg (185.19 lbs) |
