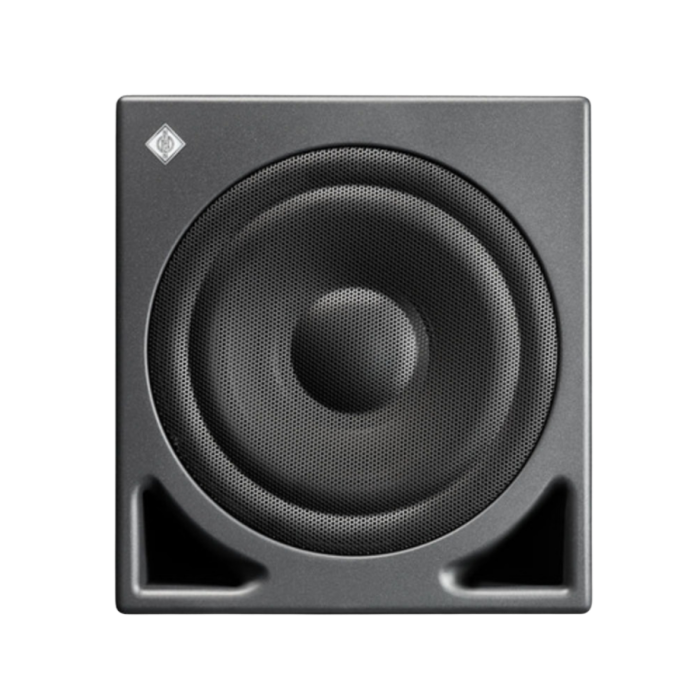

Neumann KH 810 G 10" Active Studio Subwoofer with 7.1 Bass Management

Neumann KH 810 G Active Studio Subwoofer with 7.1 Bass Management

The Neumann KH 810 G is a professional 10-inch active studio subwoofer engineered to extend low-frequency performance for stereo, surround, and immersive monitoring systems. Featuring an integrated 7.1 High Definition Bass Manager™, the KH 810 G is designed for music production, broadcast, post-production, mastering, and film mixing environments where accurate bass reproduction and flexible multichannel monitoring are essential. Its powerful amplifier, precision-engineered bass driver, and advanced acoustic controls deliver deep, controlled, and distortion-free low-frequency performance down to 18 Hz while integrating seamlessly with Neumann KH Series studio monitors.

Built for modern professional studios, the KH 810 G supports monitoring configurations ranging from mono and stereo to 7.1 surround and immersive audio systems. Its comprehensive bass management system allows precise integration of LFE channels, flexible routing, and optimized crossover performance, enabling engineers to create reliable monitoring environments for today's demanding production workflows.

Powerful Low-Frequency Performance

The KH 810 G utilizes a long-throw 10-inch composite sandwich woofer housed in a rigid wooden cabinet with large front-mounted bass reflex ports. This design minimizes cabinet resonance while producing tight, accurate bass with excellent transient response and minimal distortion, even at high playback levels. The front-ported enclosure also allows flexible placement near walls or flush-mounted installations without compromising acoustic performance.

Integrated 7.1 High Definition Bass Manager™

One of the defining features of the KH 810 G is its integrated 7.1 High Definition Bass Manager™, supporting monitoring systems from mono through full 7.1 surround. The bypassable fourth-order 80 Hz crossover enables seamless integration with satellite monitors while reducing distortion and increasing overall system headroom. Multiple LFE routing modes provide compatibility with professional broadcast, film, and consumer audio formats.

Advanced Acoustic Control

The KH 810 G provides extensive acoustic adjustment options for precise room integration. Engineers can optimize system performance using an 8-position phase control with integrated test tone, a continuously adjustable low-cut filter, a bypassable parametric equalizer, variable input gain, and output level controls. These features simplify installation while ensuring consistent bass performance in a wide range of studio environments.

Flexible Connectivity and System Expansion

With eight balanced XLR analog inputs and outputs, the KH 810 G integrates easily into professional monitoring systems. The dedicated Sum output enables the creation of larger subwoofer arrays and supports Neumann's Plane Wave Bass Array™ (PWBA™) technology for improved bass consistency across the listening area. Remote operation is available through the optional NRC 1 Remote Control and SEA 1 Subwoofer EtherCon Adapter, allowing centralized volume and bass management control.

Key Features

• Professional 10-inch active studio subwoofer.
• Integrated 7.1 High Definition Bass Manager™.
• Extends low-frequency response down to 18 Hz.
• Long-throw composite sandwich woofer.
• Front bass-reflex ports for flexible installation.
• 200 W Class AB power amplifier.
• Supports mono, stereo, surround, and immersive monitoring systems.
• Bypassable 80 Hz fourth-order crossover.
• Four selectable LFE routing modes.
• Balanced XLR analog inputs and outputs.
• Parametric EQ, low-cut filter, and phase adjustment.
• Compatible with Neumann KH Series studio monitors.
• Expandable using Plane Wave Bass Array™ technology.
• Universal 100–240 V switched-mode power supply.

Ideal Applications

• Professional music production
• Recording studios
• Mixing and mastering
• Film and television post-production
• Broadcast studios
• Dolby surround monitoring
• Immersive audio production
• Multichannel monitoring systems
• LFE channel reproduction
• Professional editing suites

Technical Specifications

• Product Type: Active studio subwoofer
• Model: KH 810 G
• Manufacturer Part Number: 503951
• Woofer: 10-inch (265 mm) long-throw composite sandwich driver
• Cabinet Design: Front bass reflex
• Frequency Response (±3 dB): 18 Hz – 300 Hz
• Frequency Response (±6 dB): 17 Hz – 600 Hz
• Maximum Bass SPL: 110.7 dB SPL (50–100 Hz average)
• Amplifier Power: 200 W
• Crossover Frequency: 80 Hz
• Crossover Slope: 24 dB/octave (4th order)
• Bass Management: Integrated 7.1 High Definition Bass Manager™
• Inputs/Outputs: Balanced XLR analog
• Power Supply: Universal 100–240 V AC switched-mode
• Cabinet Material: Wood with aluminum electronics panel
• Dimensions (H × W × D): 360 × 330 × 645 mm
• Weight: 26 kg
• Finish: Metallic Anthracite

Package Contents

• 1 × Neumann KH 810 G Active Studio Subwoofer
• 3 × Mains Cables (EU, UK, and US)
• 1 × Operating Manual
• 1 × Getting Started Quickly Guide

Why Choose the Neumann KH 810 G?

The Neumann KH 810 G delivers accurate, powerful, and tightly controlled low-frequency reproduction for today's professional production environments. Its advanced 7.1 bass management, flexible multichannel connectivity, comprehensive acoustic tuning controls, and seamless integration with Neumann KH Series monitors make it an exceptional solution for stereo, surround, and immersive audio workflows. Whether mixing music, mastering albums, editing films, or producing broadcast content, the KH 810 G provides the precision, reliability, and low-frequency accuracy required by professional engineers worldwide.
