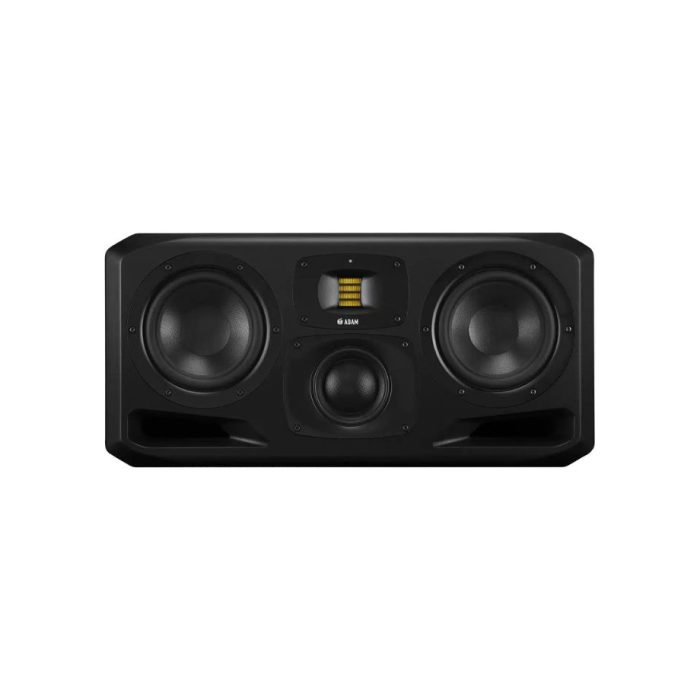

ADAM Audio S5H Flagship Main Monitor
Brand
ADAM
The ADAM Audio S5H is a high-performance three-way main monitor designed for the world's most expansive studios and control rooms. Featuring dual 10" ELE bass drivers, a 4" DCH hybrid midrange, and the S-ART tweeter, it delivers an astounding 131 dB SPL and 1100W of total power for unrivaled audio fidelity in Dubai and the GCC.
ADAM Audio S5H: The Ultimate Reference Standard for Main Monitoring
The ADAM Audio S5H is a formidable 3-way horizontal main monitor, custom-designed to meet the rigorous demands of the world's premier recording and post-production facilities. As the flagship of the S Series, the S5H combines massive power with surgical German precision. Whether you are outfitting a large-scale scoring stage in Dubai or a flagship mastering suite in Abu Dhabi, the S5H delivers a palpable sense of depth and a ruler-flat frequency response that ensures your mixes translate perfectly worldwide.
Advanced Tri-Amplified Driver Array
The S5H utilizes a sophisticated 4-amplifier configuration to deliver 1800W of total RMS power with ultra-low distortion:
- Dual 10-Inch ELE Woofers: Two 700W PWM-powered HexaCone woofers utilize Symmetrical Magnet Assembly (SMA) technology to provide tightly controlled, distortion-free bass down to a subterranean 22Hz.
- 4-Inch DCH Midrange: A unique 300W dome/cone hybrid driver that combines the clean dispersion of a dome with the high excursion of a cone, ensuring crystal-clear vocal and instrument placement.
- Handmade S-ART Tweeter: The latest iteration of ADAM’s famous ribbon tweeter, handcrafted in Berlin to reproduce high-frequency nuances up to 50kHz with zero compression.
Precision Waveguides and Immersive Imaging
The S5H is engineered to accommodate multiple people within its exceptionally wide "sweet spot." The MPS (Midrange Propagation System) and HPS (High-frequency Propagation System) waveguides are milled from solid aluminum to ensure stable, wide-ranging dispersion. This makes the S5H the ideal choice for production teams working together in large-format control rooms across the UAE.
Custom DSP and Digital Integration
Every S5H features a high-performance DSP engine that optimizes the crossover for a linear response and provides comprehensive room-tuning options:
- In-Room Tuning: 6-band parametric EQ plus high/low shelf filters allow for perfect calibration to your studio’s acoustics.
- Digital Connectivity: Features AES3 digital inputs alongside traditional balanced analog XLR, ensuring a pure signal path from your workstation.
- USB Remote Control: A rear-panel USB port allows for easy software updates and remote DSP control via computer.
Technical Specifications
- Monitor Type: 3-Way Active Horizontal Main Monitor.
- Tweeter: 2" S-ART Ribbon with HPS Waveguide.
- Midrange: 4" DCH Carbon Composite with MPS Waveguide.
- Woofers: 2 x 10" ELE HexaCone Woofers.
- Total Power: 1800W RMS (2x 700W LF, 300W MF, 100W HF).
- Frequency Response: 22 Hz – 50 kHz.
- Maximum SPL: ≥131 dB (per pair at 1m).
- Crossover Frequencies: 250 Hz / 3 kHz.
- Inputs: Analog XLR, Digital AES3 (In/Out).
- Dimensions (HxWxD): 430 mm x 885 mm x 500 mm.
- Weight: 72.6 kg (160 lbs) per unit.
Uncompromised power. Absolute transparency. Order the ADAM Audio S5H from Gigstore today and experience the pinnacle of professional monitoring.
