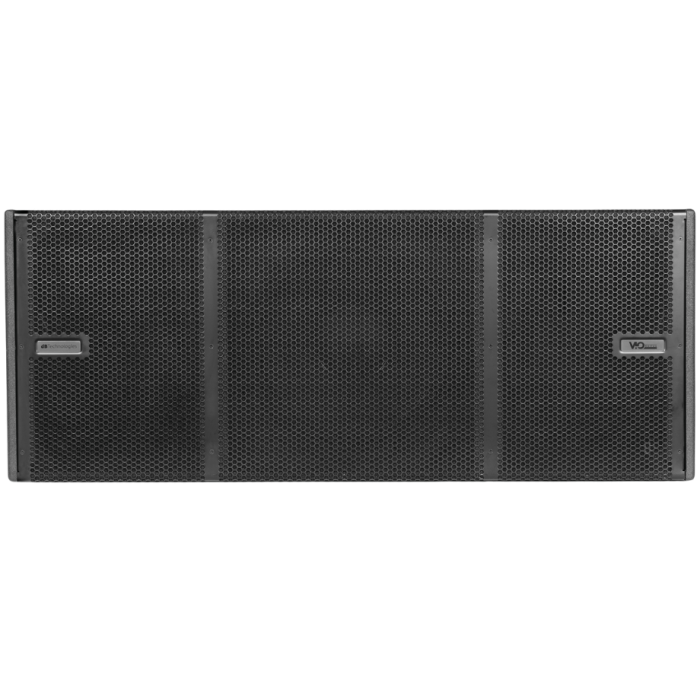

dBTechnologies VIO S318 Active Bassreflex Semi-Horn Loaded Subwoofer
Brand
D B TECHNOLOGIES
The dBTechnologies VIO S318 is an active 3x18" bass-reflex semi-horn loaded subwoofer engineered to deliver extreme low-frequency output and precision phase response for large-scale live sound applications and permanent installations. Equipped with three Digipro G3 Class-D amplifiers generating 2700W RMS power and reaching a maximum SPL of 143 dB, the VIO S318 offers comprehensive onboard DSP control and network integration via RDNet.
Experience majestic output and earth-shaking low frequencies with the dBTechnologies VIO S318 Active Bassreflex Semi-Horn-Loaded Subwoofer, available now at Gigstore UAE. A one-of-a-kind system defined by its innovative acoustic configuration and formidable power, the VIO S318 is engineered to complete the VIO line array series by maximizing frontal emission and extending deep low-end response for large-scale live sound applications and permanent installations.
Innovative Triple-18” Acoustic Design
The VIO S318 is equipped with three massive 18” woofers featuring 4” voice coils. Its unique internal architecture utilizes two half-horn loaded woofers combined with a third direct-radiation woofer, successfully merging the acoustic benefits of different loading configurations. Crucially, the voice coils of all three woofers are mechanically aligned in-phase to achieve an extraordinary phase response and a staggering maximum SPL of up to 143 dB.
Digipro® G3 Class-D Amplification & Smart DSP Processing
Driven by three independent Digipro G3 Class-D amplifiers delivering a total of 2,700 W RMS (5,400 W peak), this powerhouse sub guarantees lightning-fast transient reproduction and efficient thermal performance. Advanced onboard DSP features a 64-bit controller with 24-bit/96kHz AD/DA conversion, providing precise crossover controls, limiter management, and an integrated delay module offering up to 9.9 ms of delay (adjustable in 0.1 ms steps) for flawless time alignment.
Advanced Control & Cardioid Flexibility
Designed for professional touring and rental companies, the VIO S318 comes network-ready with an integrated RDNet port for comprehensive remote monitoring of levels, limiters, and component health via software like Aurora Net. For stage setups requiring controlled low-frequency dispersion, the system features a dedicated onboard cardioid preset button, allowing rear-facing subwoofers to be processed automatically for maximum rear cancellation.
Rugged Tour-Ready Build & Rigging
Housed in a sturdy multiplex plywood cabinet finished with a road-resistant polyurea coating, the enclosure is built to endure demanding tour schedules. It is equipped with five robust aluminum handles per side, four eyelets for ratchet strap fastening, and top pick points designed to securely integrate the DRK-210 rigging frame.
Technical Specifications
| Speaker Type: | Active Bassreflex Semi-Horn-Loaded Subwoofer |
| RMS Power: | 2700 W (Digipro® G3 Class-D) |
| Peak Power: | 5400 W |
| Max SPL: | 143 dB |
| Frequency Response [-10 dB]: | 35 Hz (HPF) |
| Frequency Response [-6 dB]: | 39 Hz to Cut Frequency (X-Over Dependent) |
| Low-Frequency Transducers (LF): | 3 x 18” Neodymium (4” Voice Coil) |
| DSP & Conversion: | DSP 64-bit / 24-bit 96 kHz AD/DA Converter |
| Network & Connectivity: | RDNet Remote Control (RJ45 IN/OUT) |
| Power Sockets: | 1x PowerCON TRUE1 In, 1x PowerCON TRUE1 Out |
| Enclosure Material: | Multiplex Plywood with Polyurea Painting |
| Dimensions (W x H x D): | 1300 mm x 520 mm x 800 mm (51.18” x 20.47” x 31.5”) |
| Weight: | 103.9 kg (229.06 lbs) |
Order Online from Gigstore UAE
Enhance your pro-audio inventory with ultimate low-end reinforcement. Order the dBTechnologies VIO S318 online from Gigstore today to enjoy genuine equipment, expert regional support, and prompt delivery across Dubai, Abu Dhabi, and the entire UAE.
